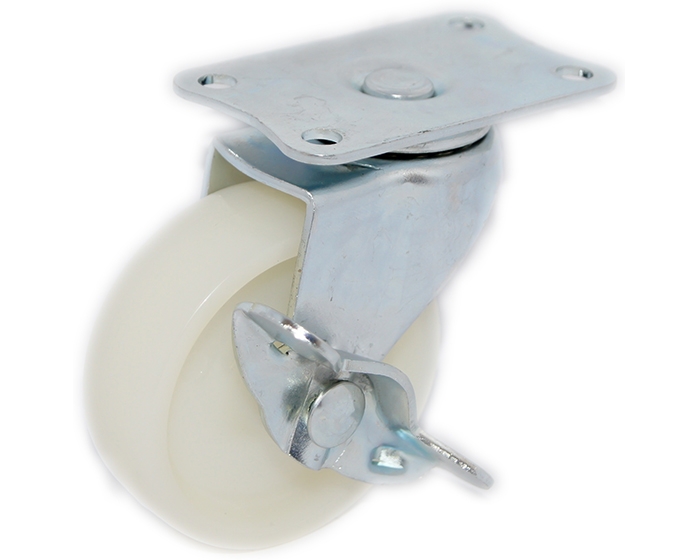

Top Plate Swivel Caster(WP2520)
Top Plate Swivel Caster
產品介紹
WP2520
產品名稱 :
Top Plate Swivel Caster
產品型號 :
WP2520
產品描述
Load Capacity: 60-100 LBS (30-50 Kgs)Each Caster.
Application: Excellent for Office Furniture and Institutional Equipment and Hospital environment.
Finishs: Metal Thickness 2m/m,with Corrosion resistant Zinc, Nickel, Chrome, Antique Plating.
Option: Side Locking Brake( SB ) or Front Locking Brake( FB ).
數量 :
詢價
WHEEL
SPECIFICATION
TOP PLATE SIZE SPECIFICATIONS
DIAMETER
INCH
( m/m )
TREAD WIDTH
INCH
( m/m )
WHEEL TYPE
BEARING
AXIE SIZE
INCH
( m/m )
CASTER NUMBER
2
1
/
2
( 63 )
13
/
16
( 21 )
Soft Rubber (SR)
Plain
1
/
4
( 6.3 )
WP2520SR
Hard Rubber (HR)
Plain
WP2520HR
Polyurethane (U)
Plain
WP2520U
Thermoplastic (TPR)
Plain
WP2520TPR
Polypropylene (P)
Plain
WP2520P
Nylon (N)
Plain
WP2520N
LOAD
CAPCITY
LBS ( Kgs )
SWIVEL RADIUS
INCH
( m/m )
OVERALL HEIGHT
INCH
( m/m )
CASTER
NUMBER
80 ( 36.3 )
2
3
/
16
( 56 )
3
1
/
8
( 80 )
WP2520SR
80 ( 36.3 )
WP2520HR
100 ( 45.4 )
WP2520U
100 ( 45.4 )
WP2520TPR
100 ( 45.4 )
WP2520P
100 ( 45.4 )
WP2520N
TOP PLATE SIZE
m/m
BOLT HOLE SPACING
m/m
BOLT HOLE SIZE
m/m
TOP PLATE NUMBER
31 x 51
21 x 40
5
1
33 x 57.2
19 x 45
5
2
40 x 68
24 x 54.5
6.8
3
43 x 70
28 x 56
6.5
4
45 x 52
32 x 40
5
5
45 x 76
27 x 57
7.3
6
47 x 60
35 x 46
6.8
7
38 x 38
28 x 28
5
8
42 x 42
30 x 30
6
9
50 x 50
38 x 38
6.2
10
62 x 62
44.5 x 44.5
6
11
