Rigid Caster

Rigid Caster
Rigid Caster
Rigid Caster
產品介紹
RP3025
產品名稱 : Rigid Caster
產品型號 : RP3025
  • Load Capacity: 100-132LBS(45.4-60.1Kgs)Each caster.
  • Application: Excellent for Institution Equipment and Furniture and Hospital environment and Food Service Equipment and Tool Boxes.
  • Finish: Corrosion Resistant Zinc.
詢價
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER   NUMBER
3
( 75 )		 1

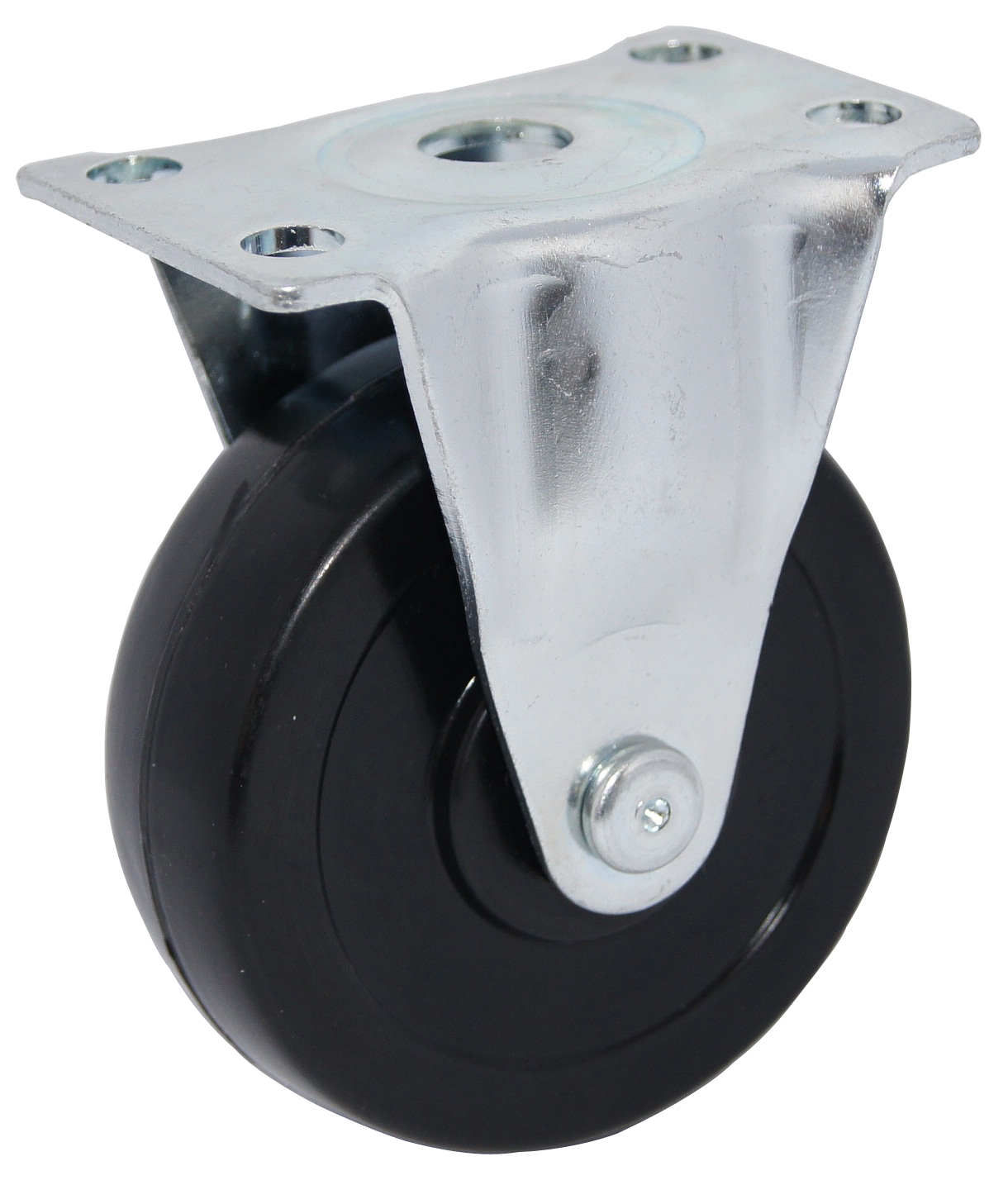

( 25 )		 Soft Rubber (SR) Plain 5/16
( 7.9 )		 RP3025SR
Hard Rubber (HR) Plain RP3025HR
Polyurethane (U) Plain RP3025U
Polyurethane (U) Ball RP3025BU
Thermoplastic (TPR) Plain RP3025TPR
Thermoplastic (TPR) Ball RP3025BTPR
Polypropylene (P) Plain RP3025P

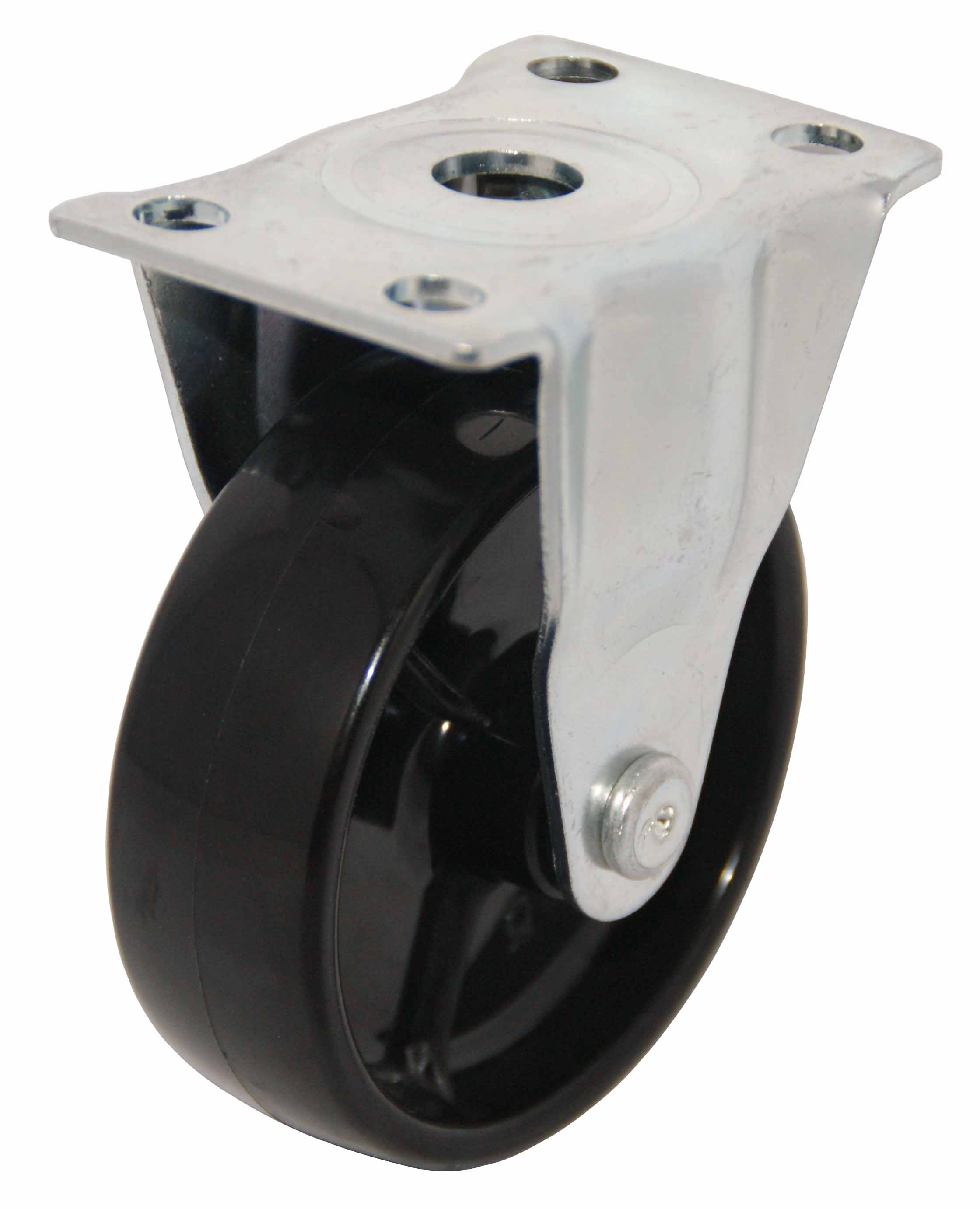

Nylon (N) Plain RP3025N

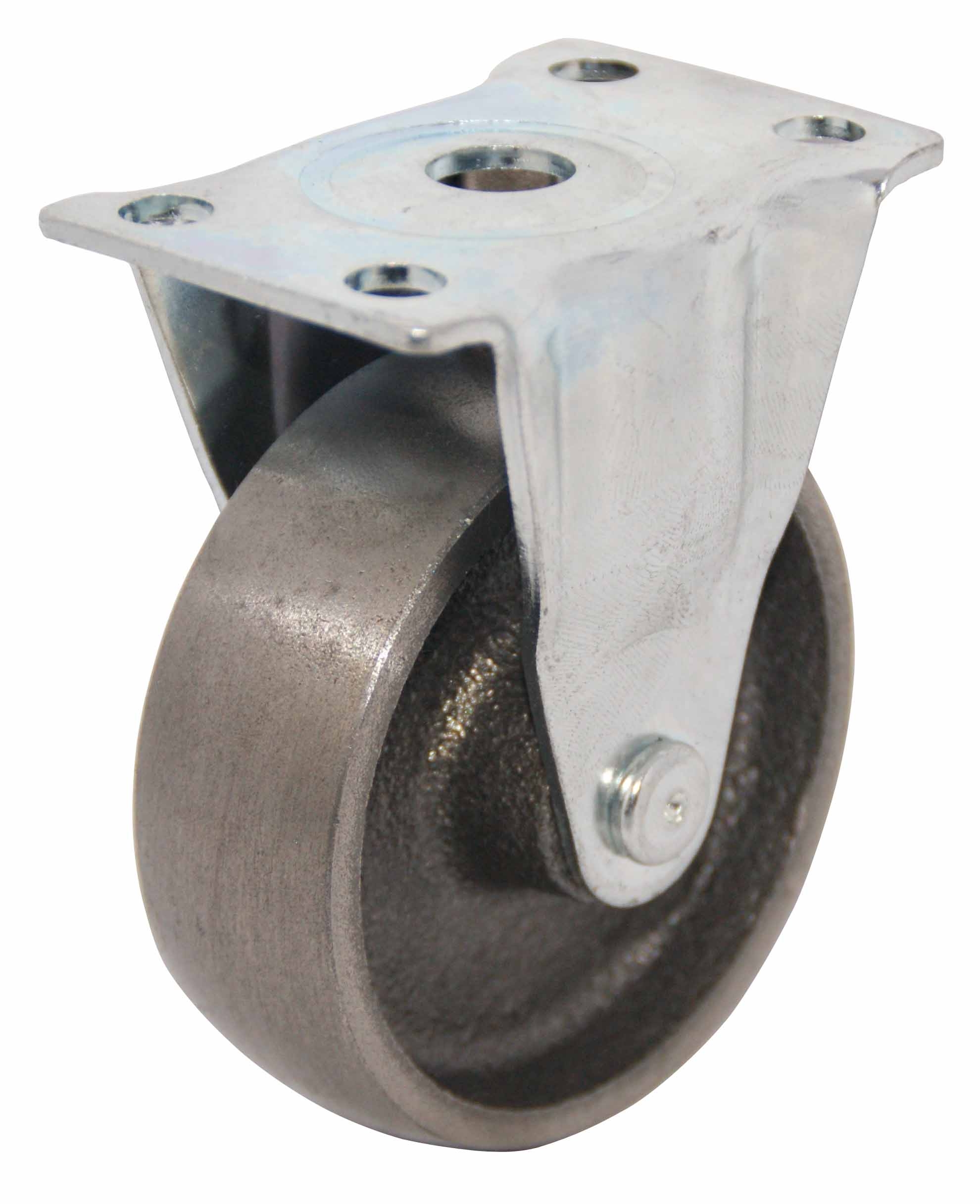

Cast Iron (C) Plain RP3025C
LOAD
CAPCITY
LBS ( Kgs )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
NUMBER
100 ( 45.4 ) 35/8
( 92 )		 RP3025SR
100 ( 45.4 ) RP3025HR
120 ( 54.5 ) RP3025U
120 ( 54.5 ) RP3025BU
120 ( 54.5 ) RP3025TPR
120 ( 54.5 ) RP3025BTPR
120 ( 54.5 ) RP3025P
120 ( 54.5 ) RP3025N
180 ( 80 ) RP3025C
TOP PLATE SIZE
INCH
( m/m )		 BOLT HOLE SPACING
INCH
( m/m )		 BOLT HOLE SIZE
m/m		 TOP PLATE NUMBER
17/8 x 23/4
( 48 x 70 )		 11/8 x 23/16
( 28 x 55 )		 8.0 A1
25/16 x 315/16
( 58 x 100 )		 19/16 x 31/4
( 40 x 82 )
 8.8 A2
23/8 x 35/8
( 60 x 92 )		 13/4 x 25/8 - 3
( 44.5 x 67 - 75 )		 8.5 41
