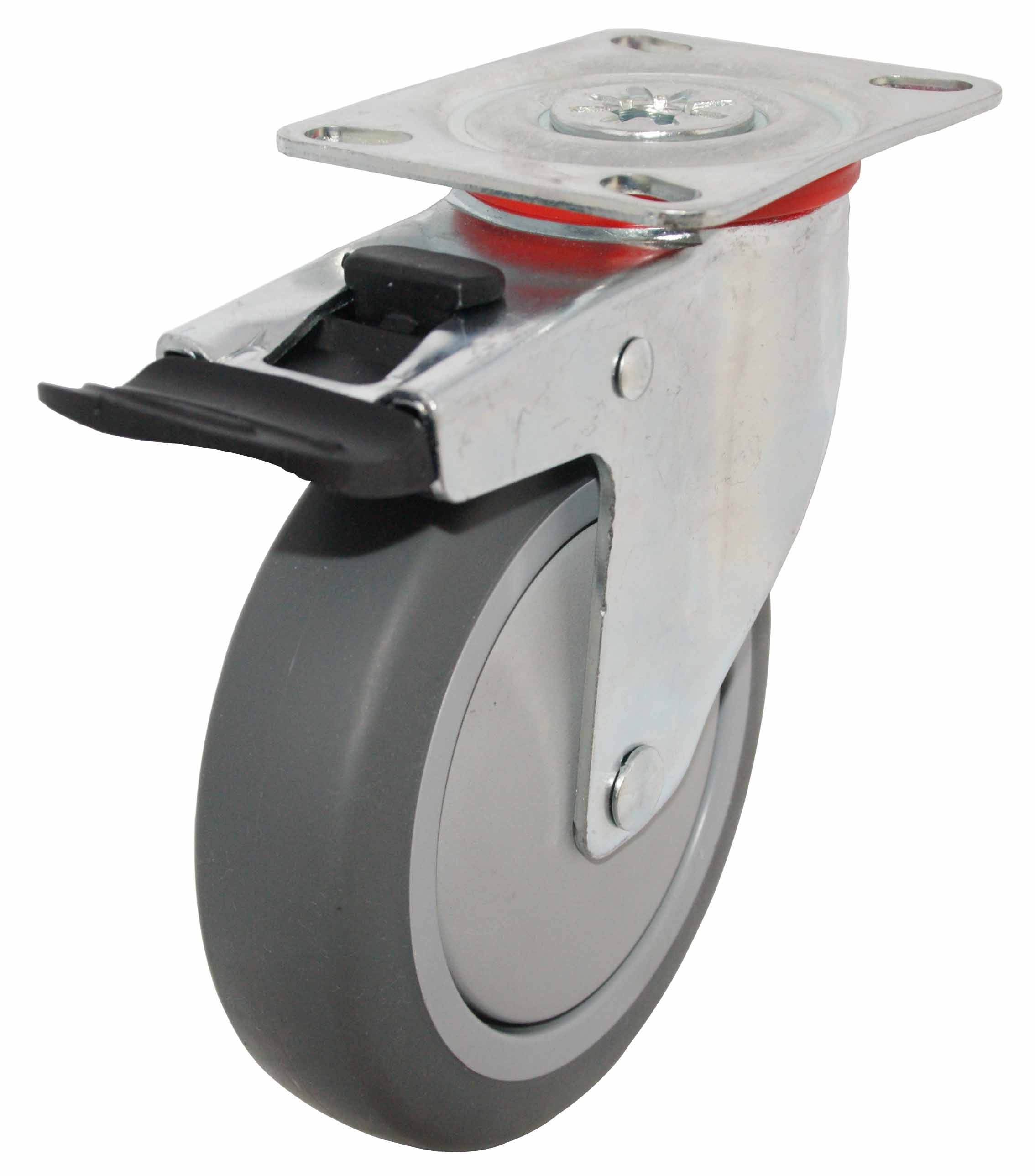

ISO514BTPR-TLB-S2
產品名稱 : ISO514BTPR-TLB-S2
產品型號 : ISO514
DIAMETER
INCH
( m/m )
TREAD WIDTH
INCH
( m/m )
WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )
CASTER
NUMBER
5
( 127 )
11/4
( 32 )
Soft Rubber (SR) Plain 3/8
( 9.5 )
ISO514SR
Hard Rubber (HR) Plain ISO514HR
Polyurethane (U) Ball ISO514BU
Thermoplastic (TPR) Ball ISO514BTPR
Polypropylene (P) Plain ISO514P
Nylon (N) Plain ISO514N
LOAD
CAPCITY
LBS ( Kgs )
SWIVEL RADIUS
INCH
( m/m )
OVERALL HEIGHT
INCH
( m/m )
CASTER
NUMBER
150 ( 68 ) PL - 4
( 101 )
TLB - 5
( 127 )
63/16
( 157 )
ISO514SR
 200 ( 90 ) ISO514HR
300 ( 136 ) ISO514BU
300 ( 136 ) ISO514BTPR
300 ( 136 ) ISO514P
300 ( 136 ) ISO514N
TOP PLATE SIZE
INCH
( m/m )
BOLT HOLE SPACING
INCH
( m/m )
BOLT HOLE SIZE
( m/m )
TOP PLATE NUMBER
31/16 x 33/4
( 78 x 96 )
13/4 - 23/8 x 3 - 31/8
( 44 - 60 x 76 - 80 )
8.8 S2
