Top Plate Swivel Caster

Top Plate Swivel Caster
Product Introduction
WP2525

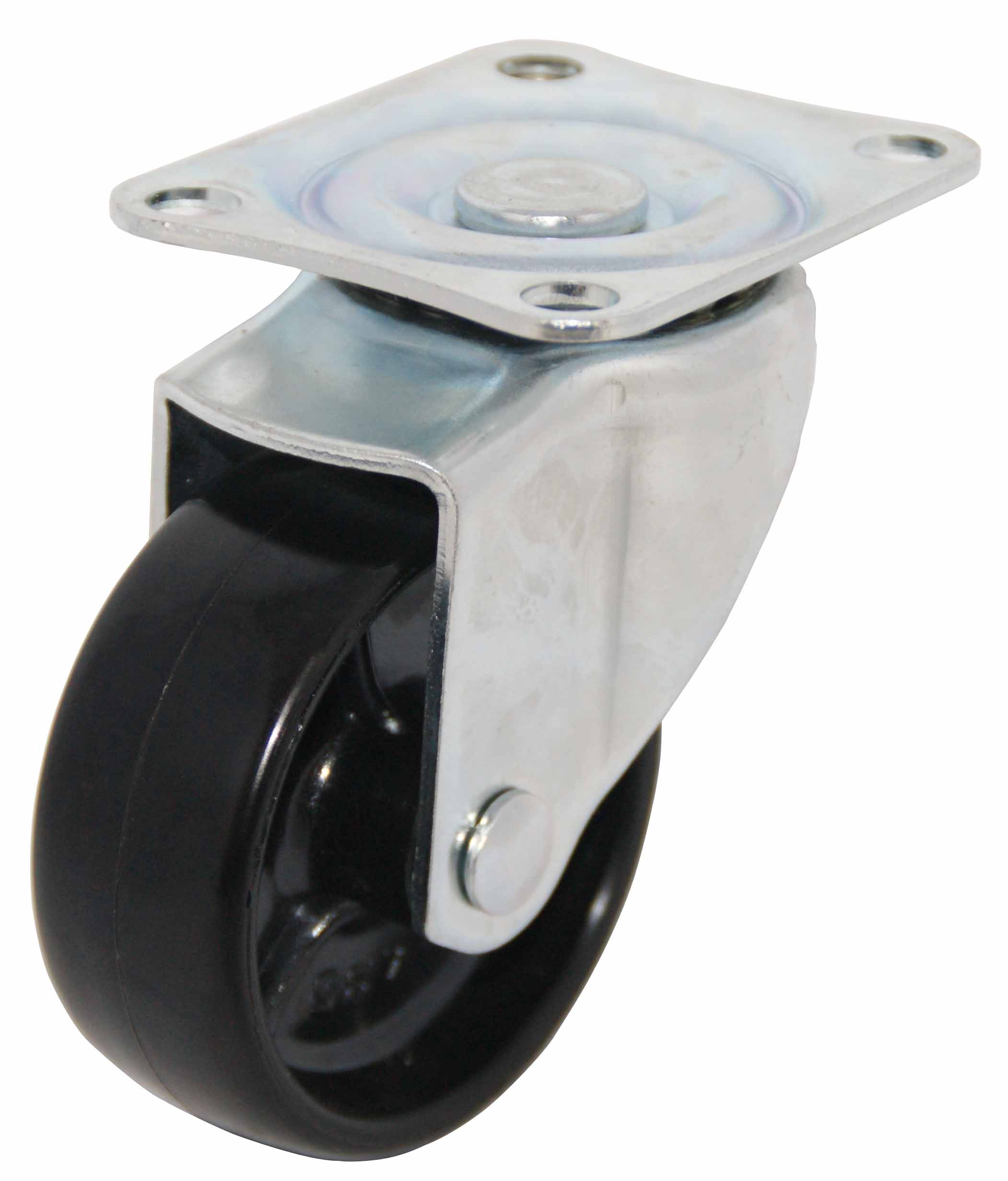

Product Name : Top Plate Swivel Caster
Product No : WP2525
  • Load Capacity: 100-132LBS(45.4-60.1Kgs)Each caster.
  • Application: Excellent for Institution Equipment and Furniture and Hospital environment and Food Service Equipment and Tool Boxes.
  • Finish: Corrosion Resistant Zinc.
  • Option: Side Locking Brake( SB ).
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
NUMBER
21/2
( 63 )		 1
( 25 )		 Soft Rubber (SR) Plain 5/16
( 7.9 )		 WP2525SR
Hard Rubber (HR) Plain WP2525HR
Polyurethane (U) Plain WP2525U
Thermoplastic (TPR) Plain WP2525TPR
Polypropylene (P) Plain WP2525P
Nylon (N) Plain WP2525N

LOAD
CAPCITY
LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
  NUMBER
100 ( 45.4 ) 23/8
( 60 )		 33/8
( 86 )		 WP2525SR
100 ( 45.4 ) WP2525HR
120 ( 54.5 ) WP2525U
120 ( 54.5 ) WP2525TPR
120 ( 54.5 ) WP2525P
120 ( 54.5 ) WP2525N

TOP PLATE SIZE
INCH
( m/m )		 BOLT HOLE SPACING
INCH
( m/m )		 BOLT HOLE SIZE
( m/m )		 TOP PLATE NUMBER
25/16  x 23/4
( 58 x 70 )		 111/16 x 23/16
( 42 x 55 )		 8.8 A1
25/16 x 23/16
   ( 58 x 100 )     		 19/16 x 31/4
( 40 x 82 )		 8.8 A2
23/8 x 35/8
( 60 x 92 )		 13/4 x 27/8 - 3
( 44.5 x 73 - 75 )		 8.5 41
23/4 x 33/4
( 70 x 95 )		 13/4 x 25/8 - 3
( 44.5 x 67 - 75 )		 8.5 42
