Product Introduction
WP2020
Product Name : Top Plate Swivel Caster
Product No : WP2020
  • Load Capacity: 60-100 LBS (30-50 Kgs)Each Caster.
  • Application: Excellent for Office Furniture and Institutional Equipment and Hospital environment.
  • Finishs: Metal Thickness 2m/m,with Corrosion resistant Zinc, Nickel, Chrome, Antique Plating.
  • Option: Side Locking Brake( SB ) or Front Locking Brake( FB ).
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
 NUMBER
2
( 50 )		 13/16

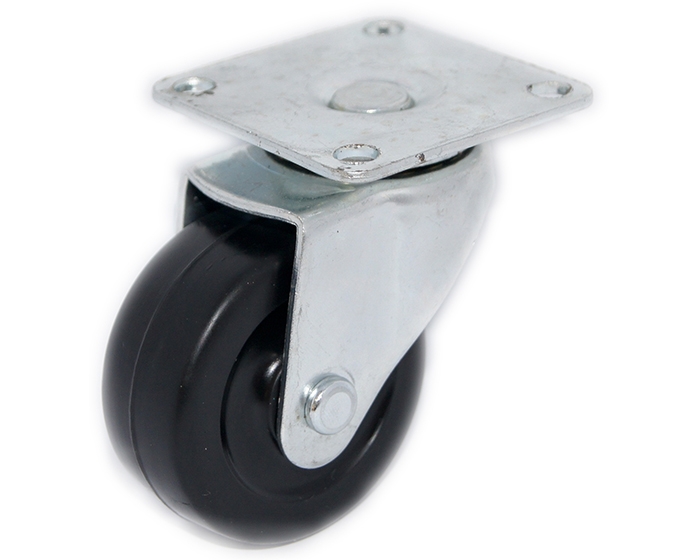

 ( 21 )		 Soft Rubber (SR) Plain 1/4
( 6.3 )		 WP2020SR
Hard Rubber (HR) Plain WP2020HR
Polyurethane (U) Plain WP2020U

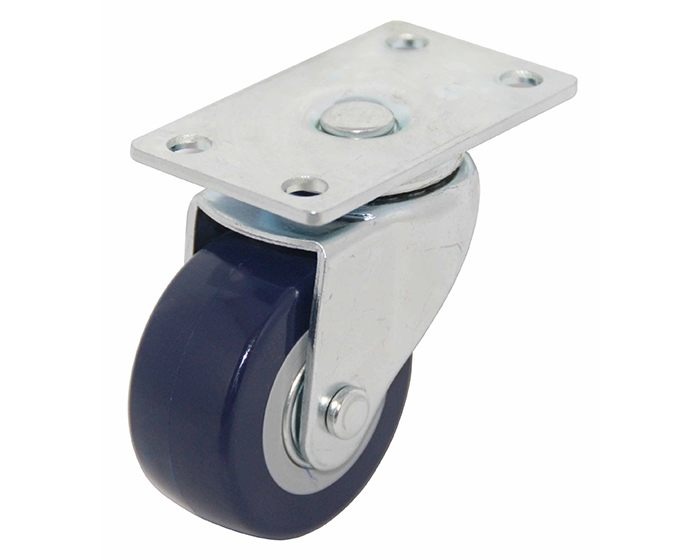

Polyurethane (U) Ball WP2020BU

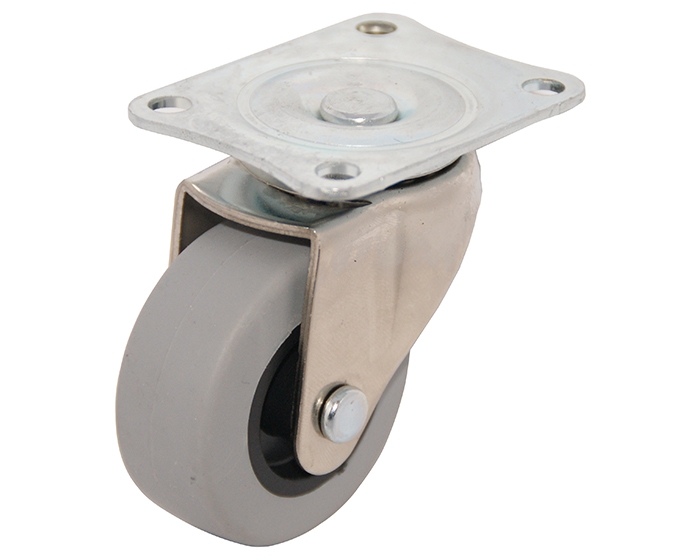

Thermoplastic (TPR) Plain WP2020TPR
Thermoplastic (TPR) Ball WP2020BTPR
Polypropylene (P) Plain WP2020P
Nylon (N) Plain WP2020N

LOAD
CAPCITY
LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
  NUMBER
80 ( 36.3 ) 17/8
( 47.6 )		 29/16
( 65 )		 WP2020SR
80 ( 36.3 ) WP2020HR
100 ( 45.4 ) WP2020U
100 ( 45.4 ) WP2020BU
100 ( 45.4 ) WP2020TPR
100 ( 45.4 ) WP2020BTPR
100 ( 45.4 ) WP2020P
100 ( 45.4 ) WP2020N

TOP PLATE SIZE
m/m		 BOLT HOLE SPACING
m/m		 BOLT HOLE SIZE
m/m		 TOP PLATE NUMBER
31 x 51 21 x 40 5 1
33 x 57.2 19 x 45 5 2
40 x 68 24 x 54.5 6.8 3
43 x 70 28 x 56 6.5 4
45 x 52 32 x 40 5 5
45 x 76 27 x 57 7.3 6
47 x 60 35 x 46 6.8 7
38 x 38 28 x 28 5 8
42 x 42 30 x 30 6 9
50 x 50 38 x 38 6.2 10
62 x 62 44.5 x 44.5 6 11
