Product Introduction
WF3020

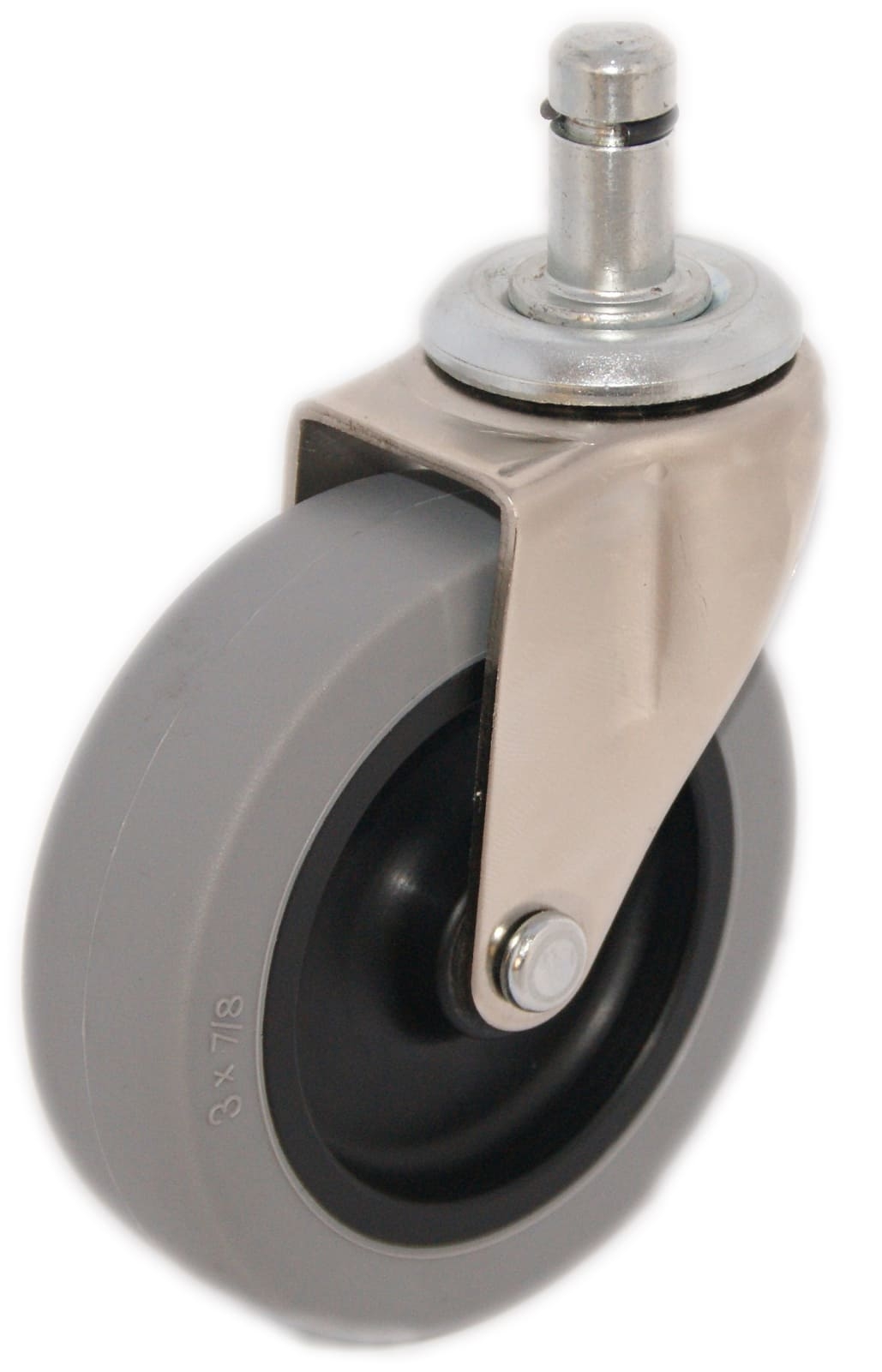

Product Name : Friction Ring Stem Swivel Caster
Product No : WF3020
  • Load Capacity: 60-100 LBS (30-50 Kgs)Each Caster.
  • Application: Excellent for Office Furniture and Institutional Equipment and Hospital environment.
  • Finishs: Metal Thickness 2m/m,with Corrosion resistant  Zinc, Nickel, Chrome, Antique Plating.
  • Option: 2" Side Locking Brake( SB ) or Front Locking Brake( FB ).
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
 NUMBER
3
( 75 )		 13/16
( 21 )		 Soft Rubber (SR) Plain 1/4
( 6.3 )		 WF3020SR
Hard Rubber (HR) Plain WF3020HR
Polyurethane (U) Plain WF3020U
Polyurethane (U) Ball WF3020BU
Thermoplastic (TPR) Plain WF3020TPR
Thermoplastic (TPR) Ball WF3020BTPR
Polypropylene (P) Plain WF3020P
Nylon (N) Plain WF3020N
LOAD
CAPCITY
LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
NUMBER
80 ( 36.3 ) 29/16
( 65 )		 31/2
( 88 )		 WF3020SR
80 ( 36.3 ) WF3020HR
100 ( 45.4 ) WF3020U
100 ( 45.4 ) WF3020BU
100 ( 45.4 ) WF3020TPR
100 ( 45.4 ) WF3020BTPR
100 ( 45.4 ) WF3020P
100 ( 45.4 ) WF3020N
FRICTION RING STEM SIZE
INCH		 STEM
NUMBER
7/16 x 7/8 22
7/16 x 1 25
7/16 x 13/8
 35

With Brass Ring or Steel Ring Stem Other Size Available
