Product Introduction
WP3025
Product Name : Top Plate Swivel Caster
Product No : WP3025
  • Load Capacity: 100-132LBS(45.4-60.1Kgs)Each caster.
  • Application: Excellent for Institution Equipment and Furniture and Hospital environment and Food Service Equipment and Tool Boxes.
  • Finish: Corrosion Resistant Zinc.
  • Option: Side Locking Brake( SB ).
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
 NUMBER
3
( 75 )		 1

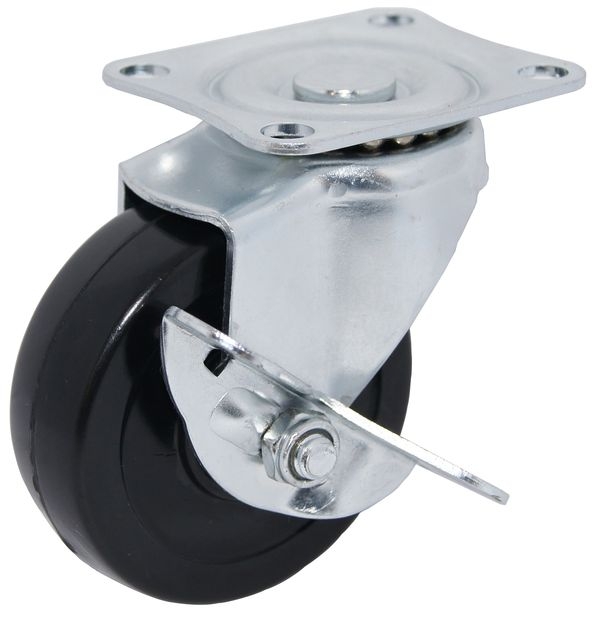

( 25 )		 Soft Rubber (SR) Plain 5/16
( 7.9 )		 WP3025SR
Hard Rubber (HR) Plain WP3025HR

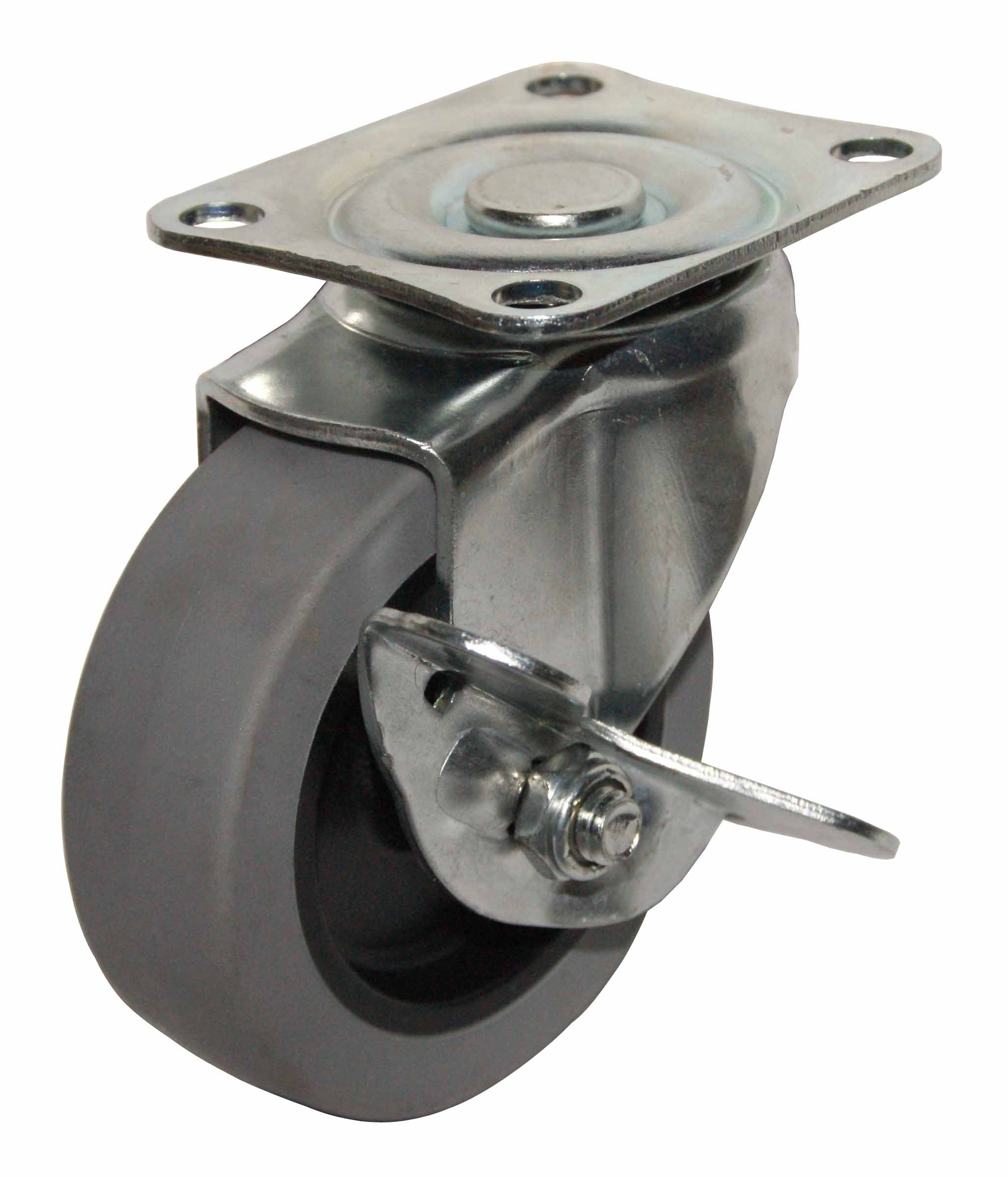

Polyurethane (U) Plain WP3025U
Polyurethane (U) Ball WP3025BU
Thermoplastic (TPR) Plain WP3025TPR
Thermoplastic (TPR) Ball WP3025BTPR
Polypropylene (P) Plain WP3025P

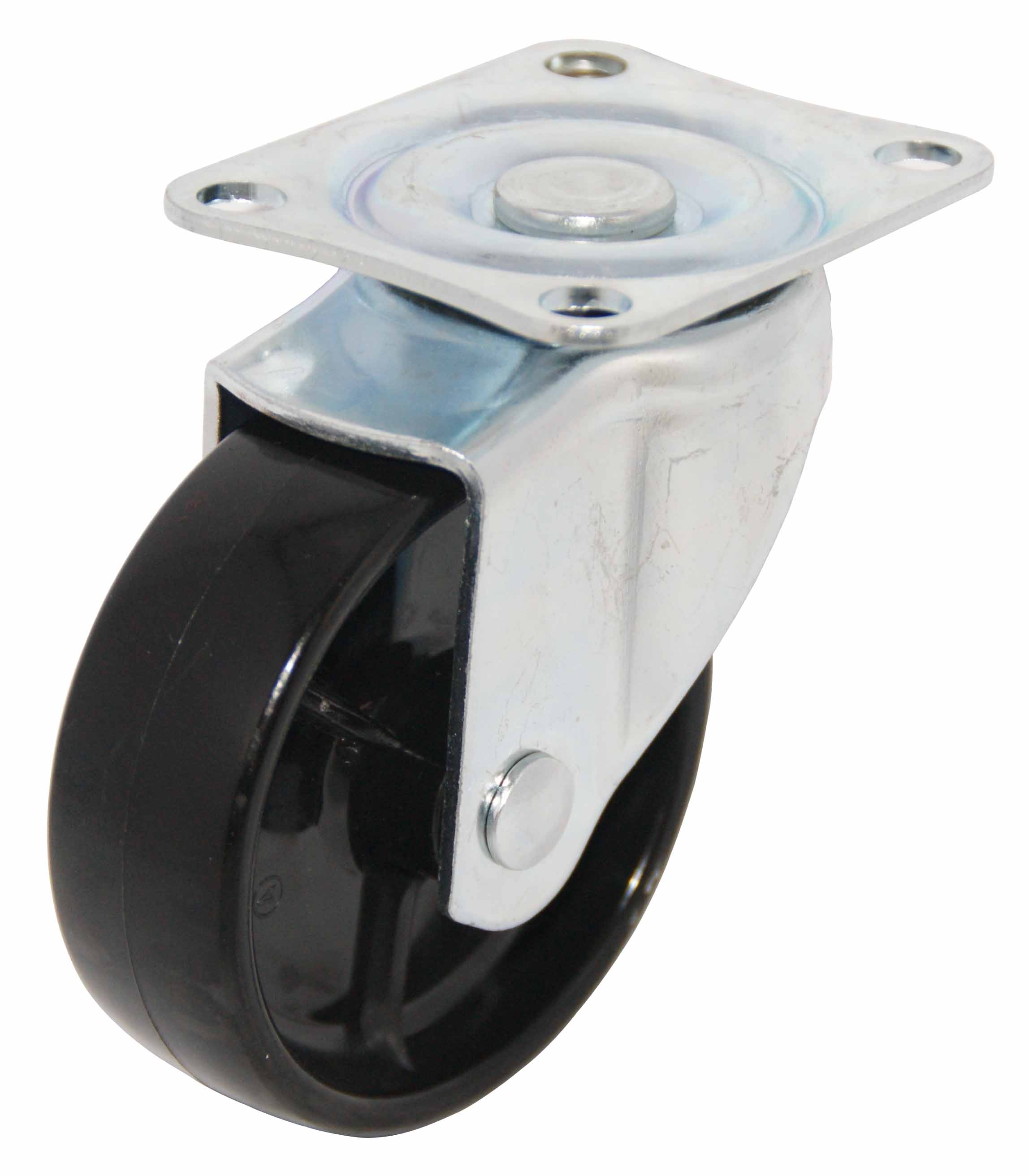

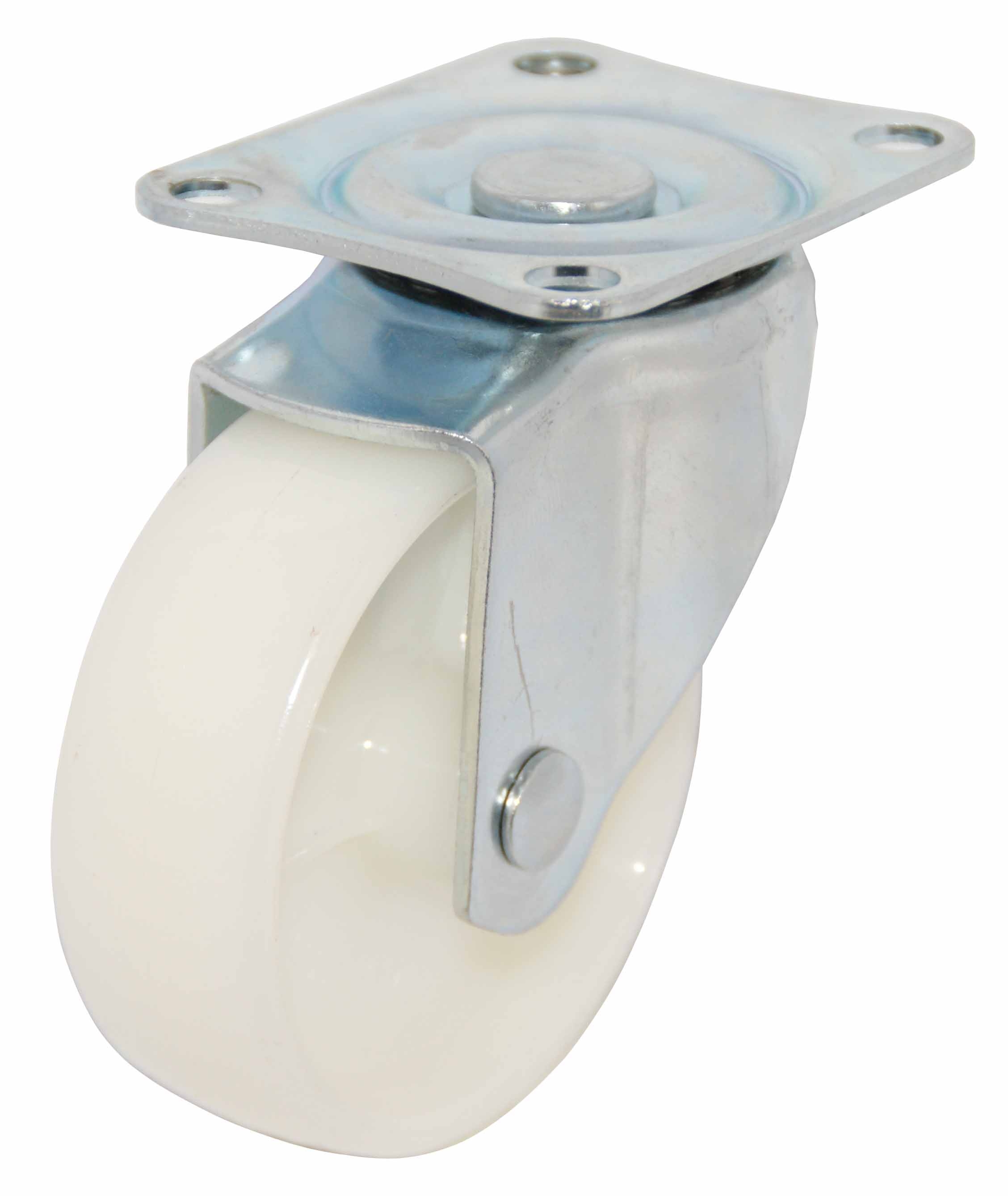

Nylon (N) Plain WP3025N

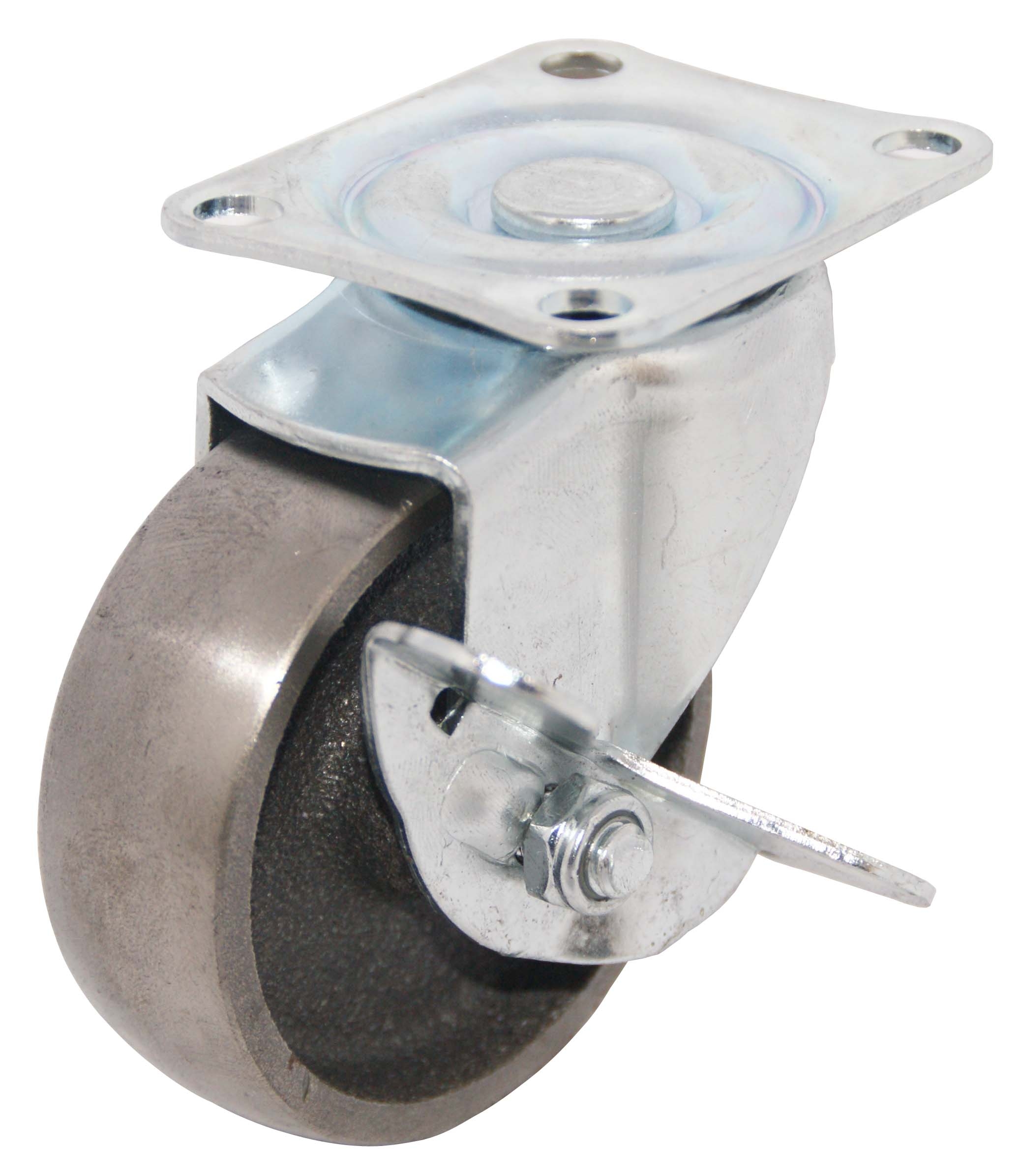

Cast Iron (C) Plain WP3025C

LOAD
CAPCITY
    LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
  NUMBER
100 ( 45.4 ) 25/8
 ( 66 )		 3 5/8
( 92 )		 WP3025SR
100 ( 45.4 ) WP3025HR
120 ( 54.5 ) WP3025U
120 ( 54.5 ) WP3025BU
120 ( 54.5 ) WP3025TPR
120 ( 54.5 ) WP3025BTPR
120 ( 54.5 ) WP3025P
120 ( 54.5 ) WP3025N
130 ( 59 ) WP3025C

TOP PLATE SIZE
INCH
( m/m )		 BOLT HOLE SPACING
INCH
( m/m )		 BOLT HOLE SIZE
( m/m )		 TOP PLATE NUMBER
25/16 x 23/4
( 58 x 70 )		 111/16 x 23/16
( 42 x 55 )		 8.8 A1
25/16 x 35/16
   ( 58 x 100 )     		 19/16 x 31/4
( 40 x 82 )		 8.8 A2
23/8 x 35/8
( 60 x 92 )		 13/4 x 27/8 - 3
( 44.5 x 73 - 75 )		 8.5 41
23/4 x 33/4
( 70 x 95 )		 13/4 x 25/8 - 3
( 44.5 x 67 - 75 )		 8.5 42
