Product Introduction
JSP2525

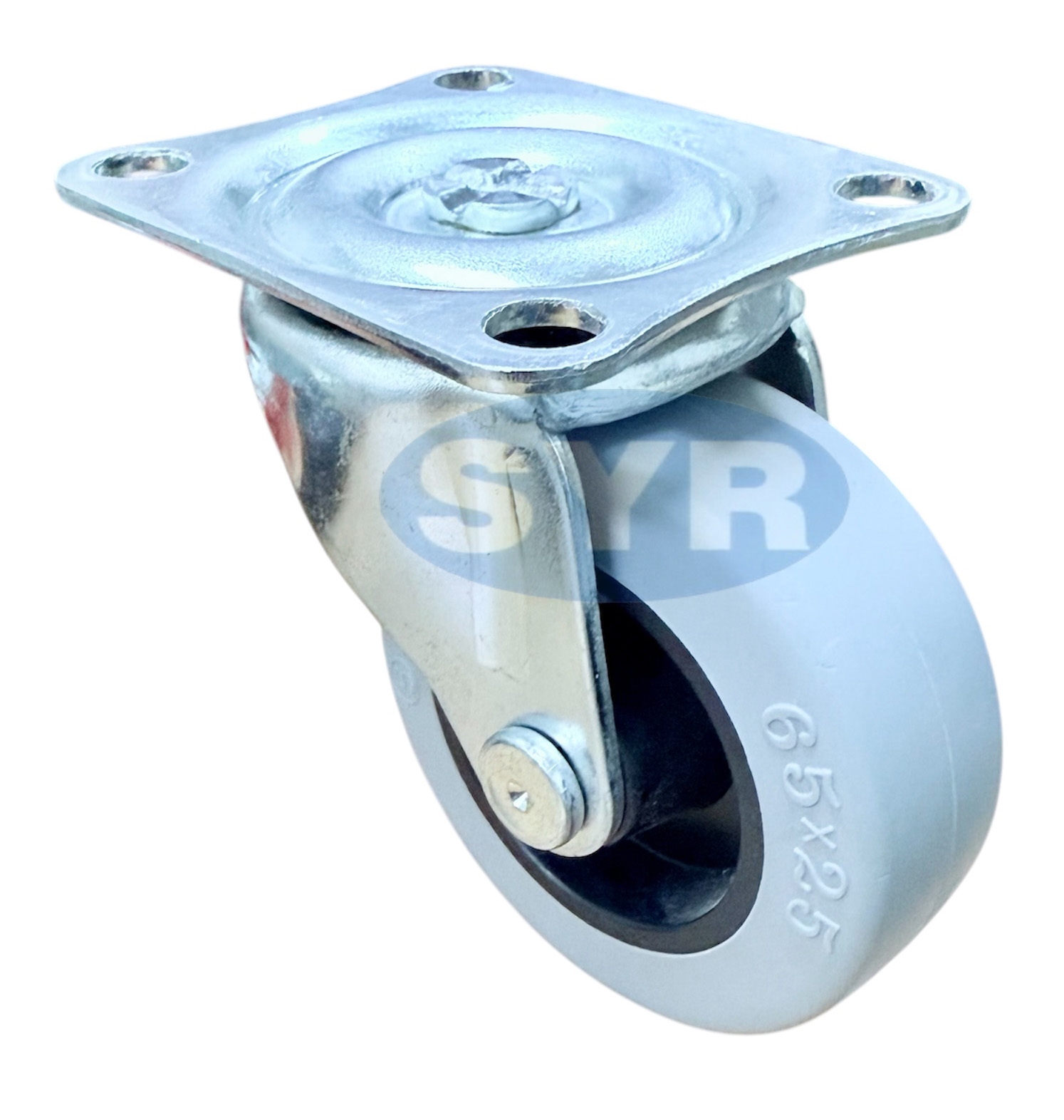

Product Name : Top Plate Swivel Caster
Product No : JSP2525
  • Load Capacity: 8-70 Kg Per Each Caster.
  • Swivel: Single Ball Bearing Raceway.
  • Application: Excellent for furniture and trolleys environment.
  • Finish: Zinc or Bright Chrome Plating.

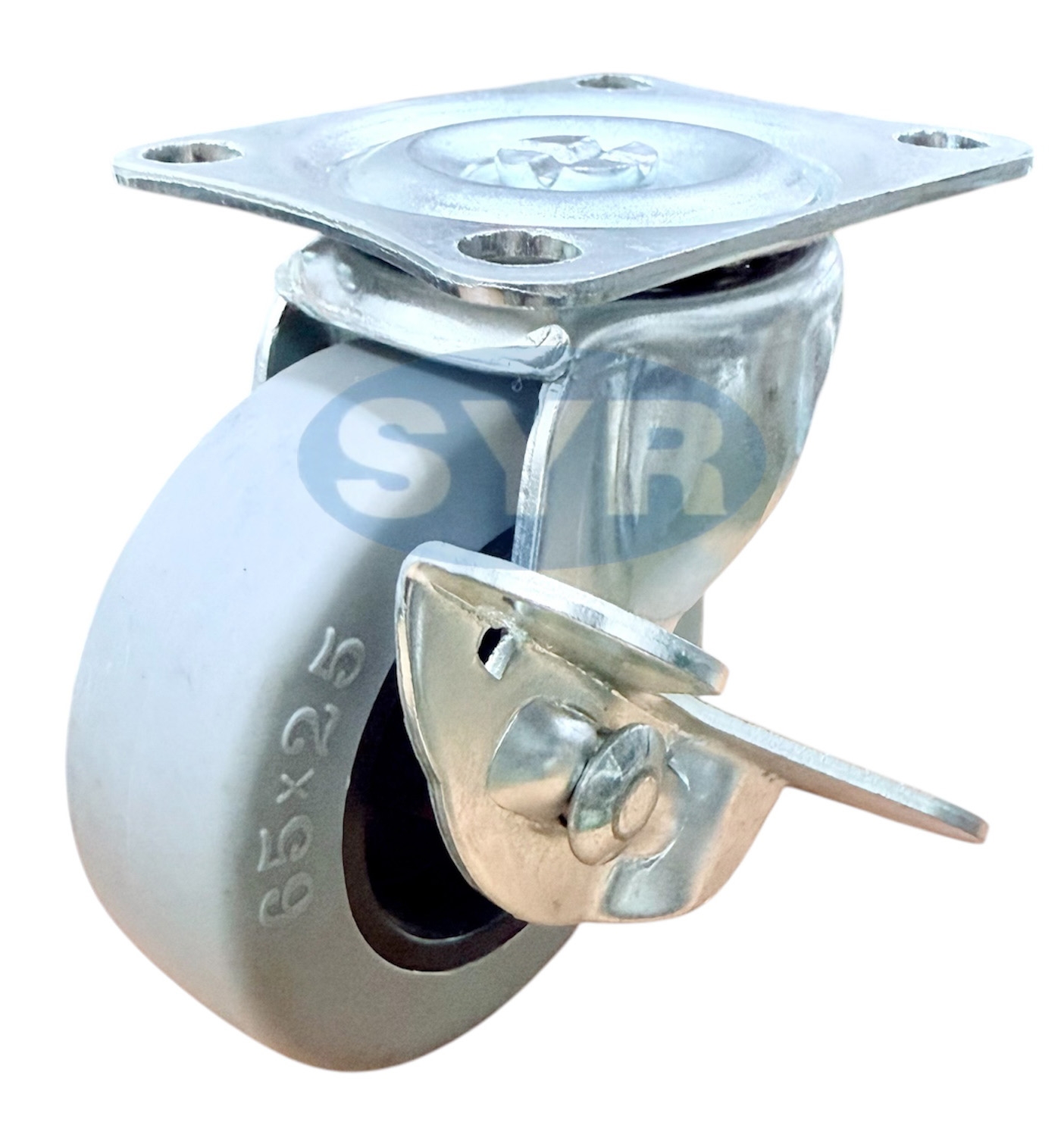

  • Option: 2",21/2",3"Caster,Side Locking Brake( SB ) Available.
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
 NUMBER
21/2
( 65 )		 1
( 25 )		 Soft Rubber (SR) Plain  5/16
 ( 8 )		 JSP2525SR
Hard Rubber (HR) Plain JSP2525HR
Polyurethane (U) Plain JSP2525U
Thermoplastic (TPR) Plain JSP2525TPR
Polypropylene (P) Plain JSP2525P
Nylon (N) Plain JSP2525N
LOAD
CAPCITY
 LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERAL HEIGHT
INCH
( m/m )		 CASTER
 NUMBER
88 ( 40 ) 21/8
( 53.5 )		 31/8
( 80 )		 JSP2525SR
88 ( 40 ) JSP2525HR
121 ( 55 ) JSP2525U
121 ( 55 ) JSP2525TPR
121 ( 55 ) JSP2525P
121 ( 55 ) JSP2525N
DIAMETER
( m/m )		 TOP PLATE SIZE
( m/m )		 BOLT HOLE SPACING
( m/m )		 BOLT HOLE SIZE
( m/m )		 TOP PLATE NUMBER
65
 58 x 70 42 x 55 8.8 J5
