Product Introduction
LMW414
Product Name : Thread Stem With HEX
Product No : LMW414
  • Load Capacity: 150-300 LBS (68-136.2 Kgs) Each Caster.
  • Application: Excellent for Hospital Supply Industry, Trolleys and Food Service Equipment.
  • Finishs: Corrosion-Resistant Zinc.

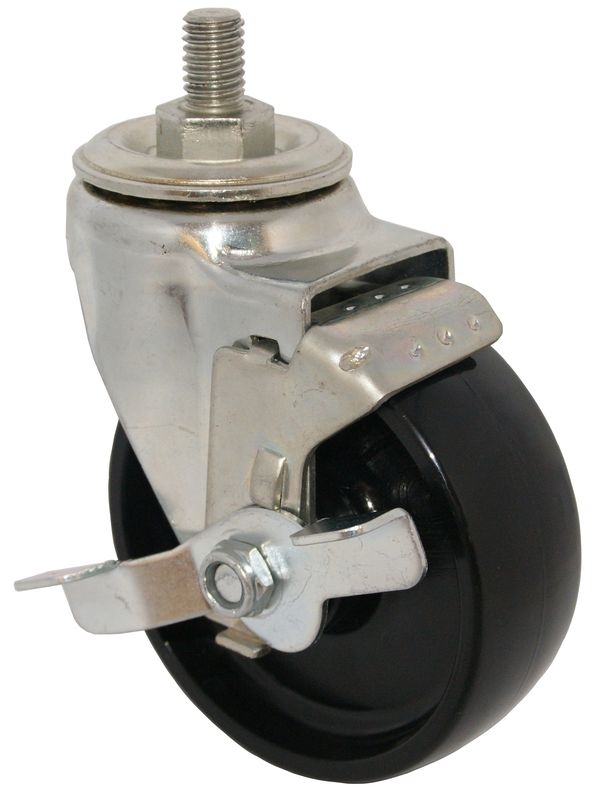

  • Option: Side Locking Brake( SB ).
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
  NUMBER
4
( 100 )		 11/4
( 32 )		 Soft Rubber (SR) Plain 3/8
( 9.5 )		 LMW414SR
Hard Rubber (HR) Plain LMW414HR

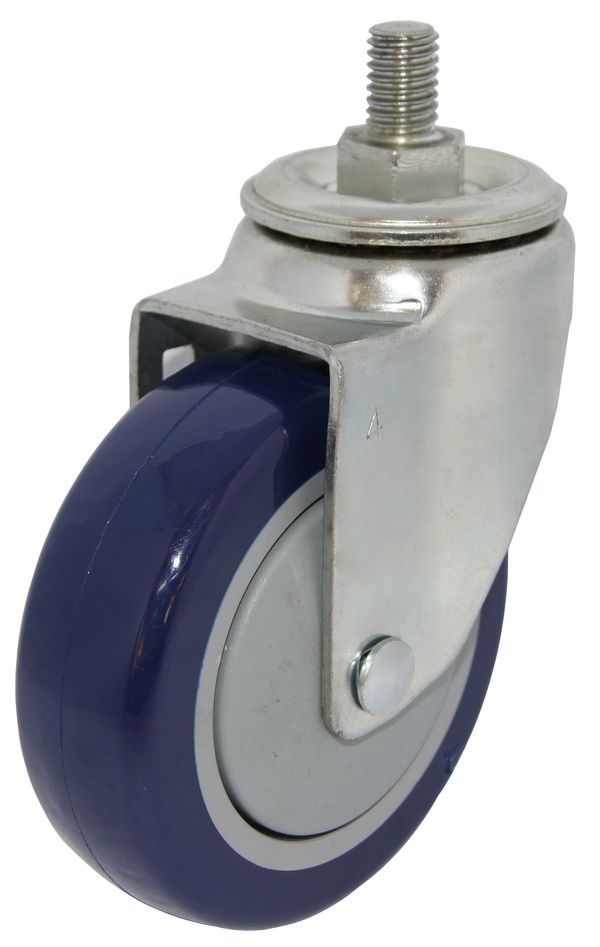

Polyurethane (U) Ball LMW414BU
Thermoplastic (TPR) Ball LMW414BTPR
Polypropylene (P) Plain LMW414P
Nylon (N) Plain LMW414N
Cast Iron (C) Plain LMW414C
LOAD
CAPCITY
LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
NUMBER
150 ( 68 ) 35/8
( 92 )		 5
( 127 )		 LMW414SR
200 ( 90 ) LMW414HR
250 ( 113 ) LMW414BU
250 ( 113 ) LMW414BTPR
250 ( 113 ) LMW414P
250 ( 113 ) LMW414N
300 ( 136 ) LMW414C
THREAD STEM SIZE
INCH
 STEM
NUMBER
1/2 - 13 x 3/4 H19
1/2 - 13 x 1 H21
1/2 - 13 x 11/2
 H22
