Product Introduction
WT3020

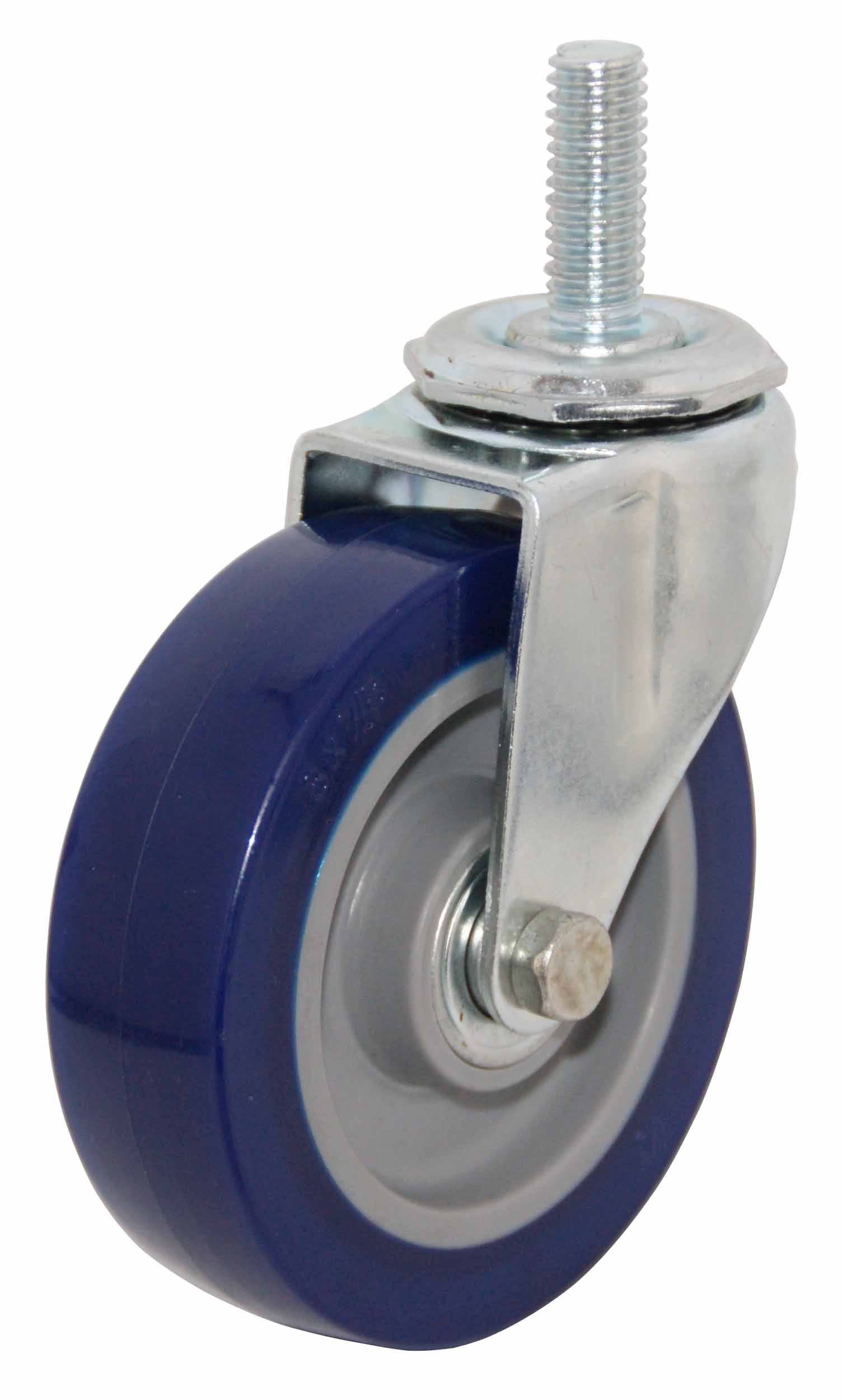

Product Name : Thread Stem Swivel Caster
Product No : WT3020
  • Load Capacity: 60-100 LBS (30-50 Kgs)Each Caster.
  • Application: Excellent for Office Furniture and Institutional Equipment and Hospital environment.
  • Finishs: Metal Thickness 2m/m,with Corrosion resistant  Zinc, Nickel, Chrome, Antique Plating.

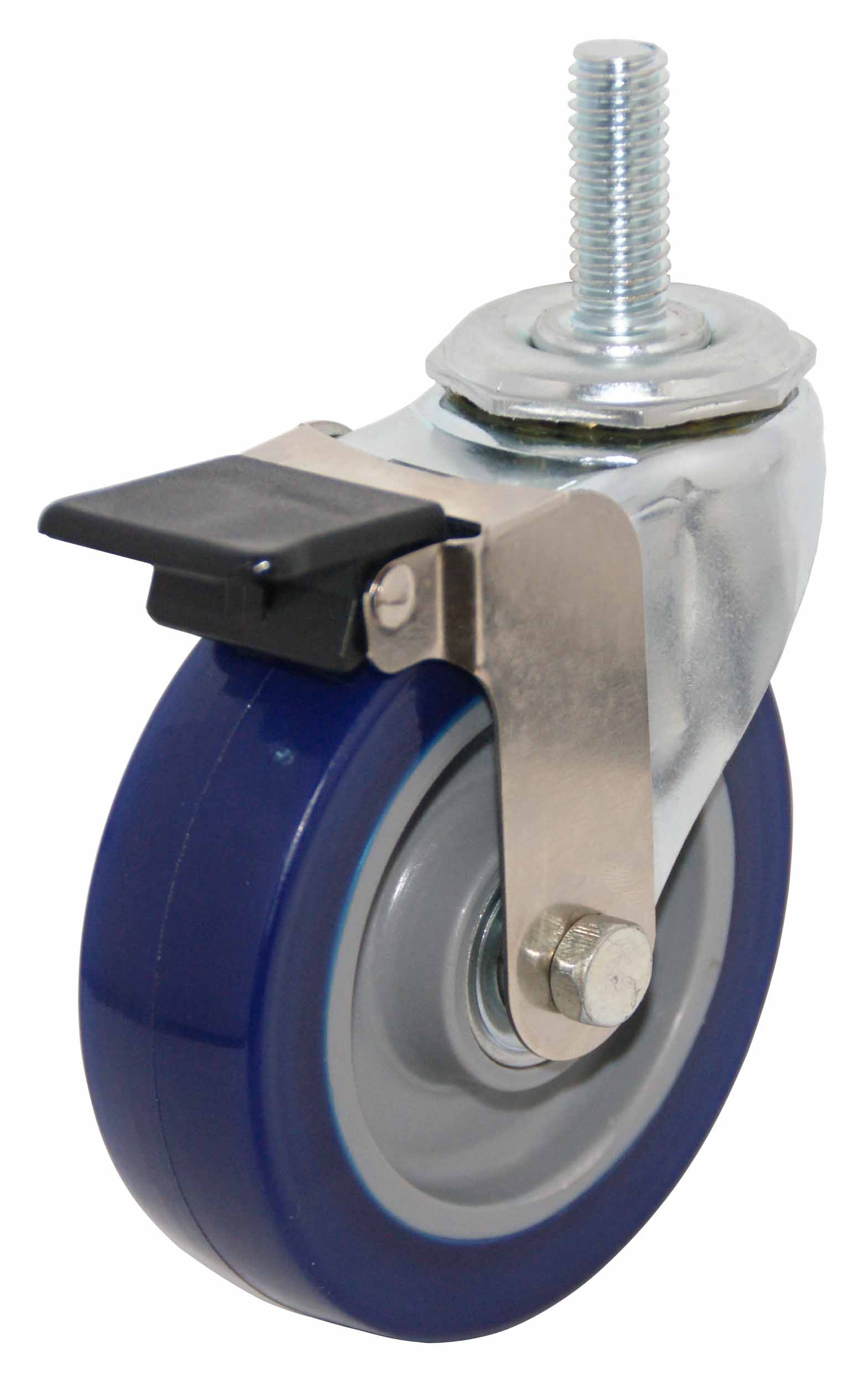

  • Option: 2" Side Locking Brake( SB ) or Front Locking Brake( FB ).
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
NUMBER
3
( 75 )		 13/16
( 21 )		 Soft Rubber (SR) Plain 1/4
( 6.3 )		 WT3020SR
Hard Rubber (HR) Plain WT3020HR
Polyurethane (U) Plain WT3020U
Polyurethane (U) Ball WT3020BU
Thermoplastic (TPR) Plain WT3020TPR
Thermoplastic (TPR) Ball WT3020BTPR
Polypropylene (P) Plain WT3020P
Nylon (N) Plain WT3020N
LOAD
CAPCITY
LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
NUMBER
80 ( 36.3 ) 29/16
( 65 )		 31/2
 ( 88 )		 WT3020SR
80 ( 36.3 ) WT3020HR
100 ( 45.4 ) WT3020U
100 ( 45.4 ) WT3020BU
100 ( 45.4 ) WT3020TPR
100 ( 45.4 ) WT3020BTPR
100 ( 45.4 ) WT3020P
100 ( 45.4 ) WT3020N
THREAD STEM SIZE
INCH		 STEM
NUMBER
5/16 - 18 x 3/4 D1
5/16 - 18 x 1 D2
5/16 - 18 x 11/2
 D3
3/8 - 16 x 1 D5
3/8 - 16 x 11/2
 D8
