Product Introduction
WW2520

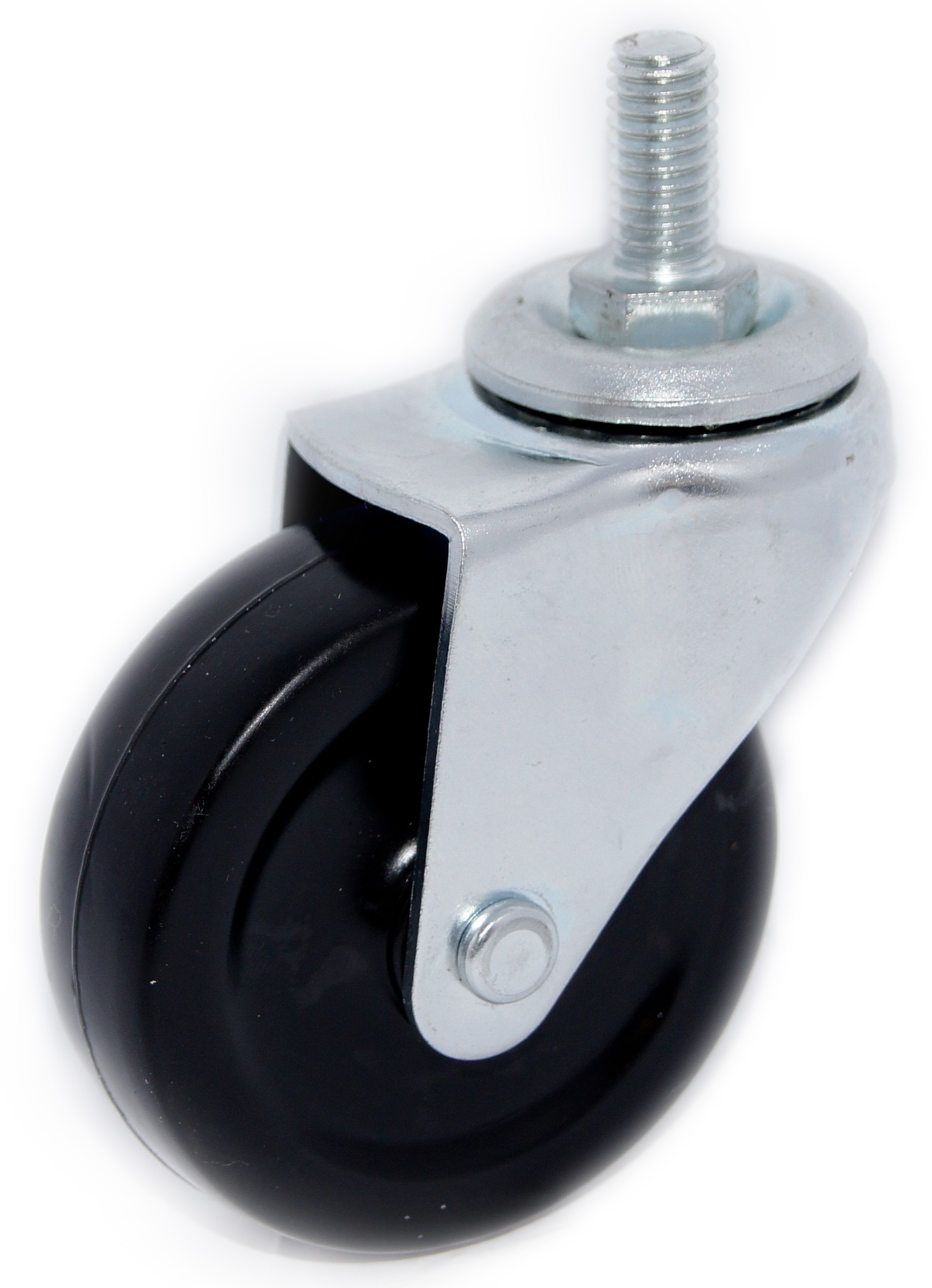

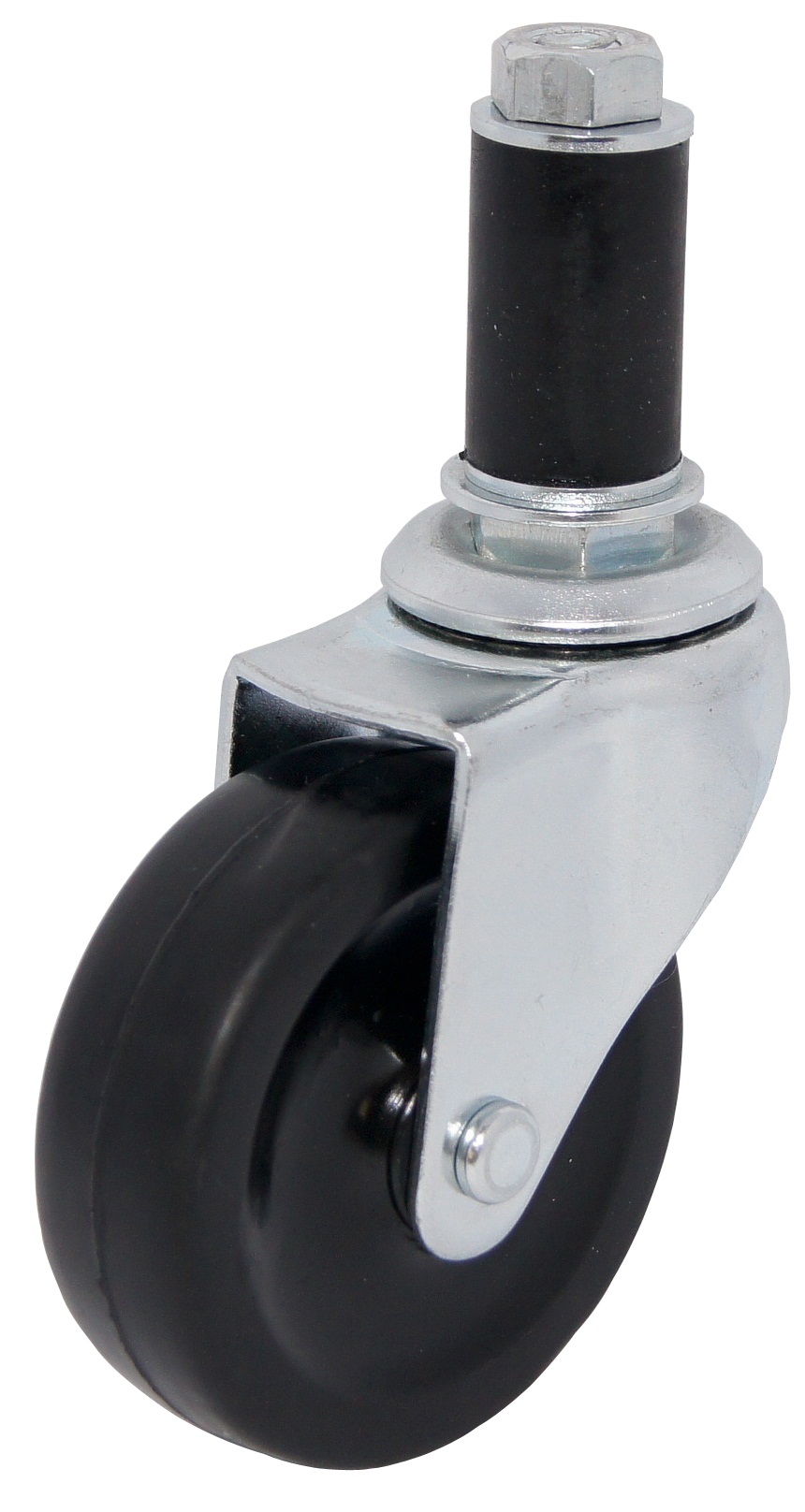

Product Name : Thread Stem Swivel Caster With HEX
Product No : WW2520
  • Load Capacity: 60-100 LBS (30-50 Kgs)Each Caster.
  • Application: Excellent for Office Furniture and Institutional Equipment and Hospital environment.
  • Finishs: Metal Thickness 2m/m,with Corrosion resistant  Zinc, Nickel, Chrome, Antique Plating.

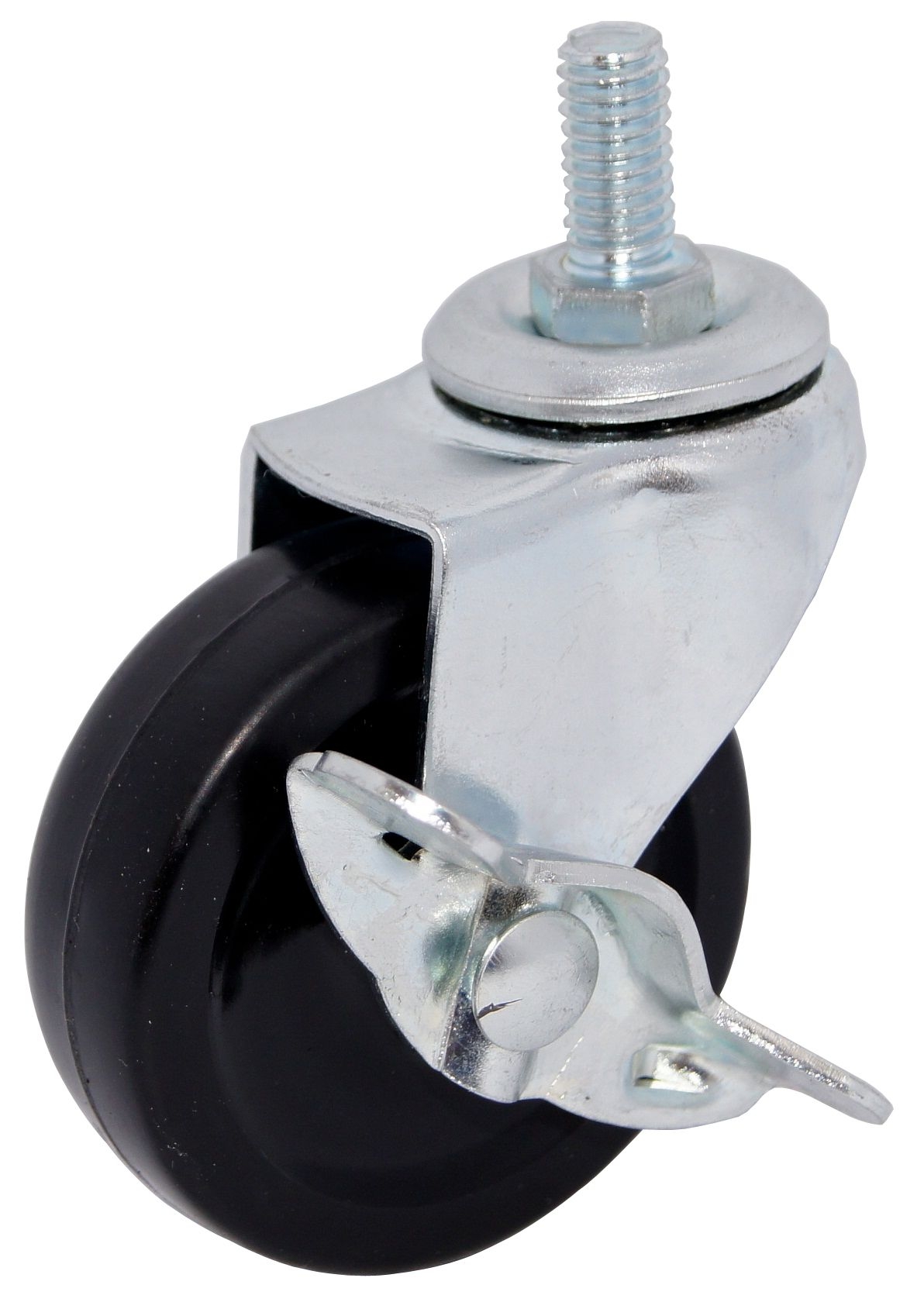

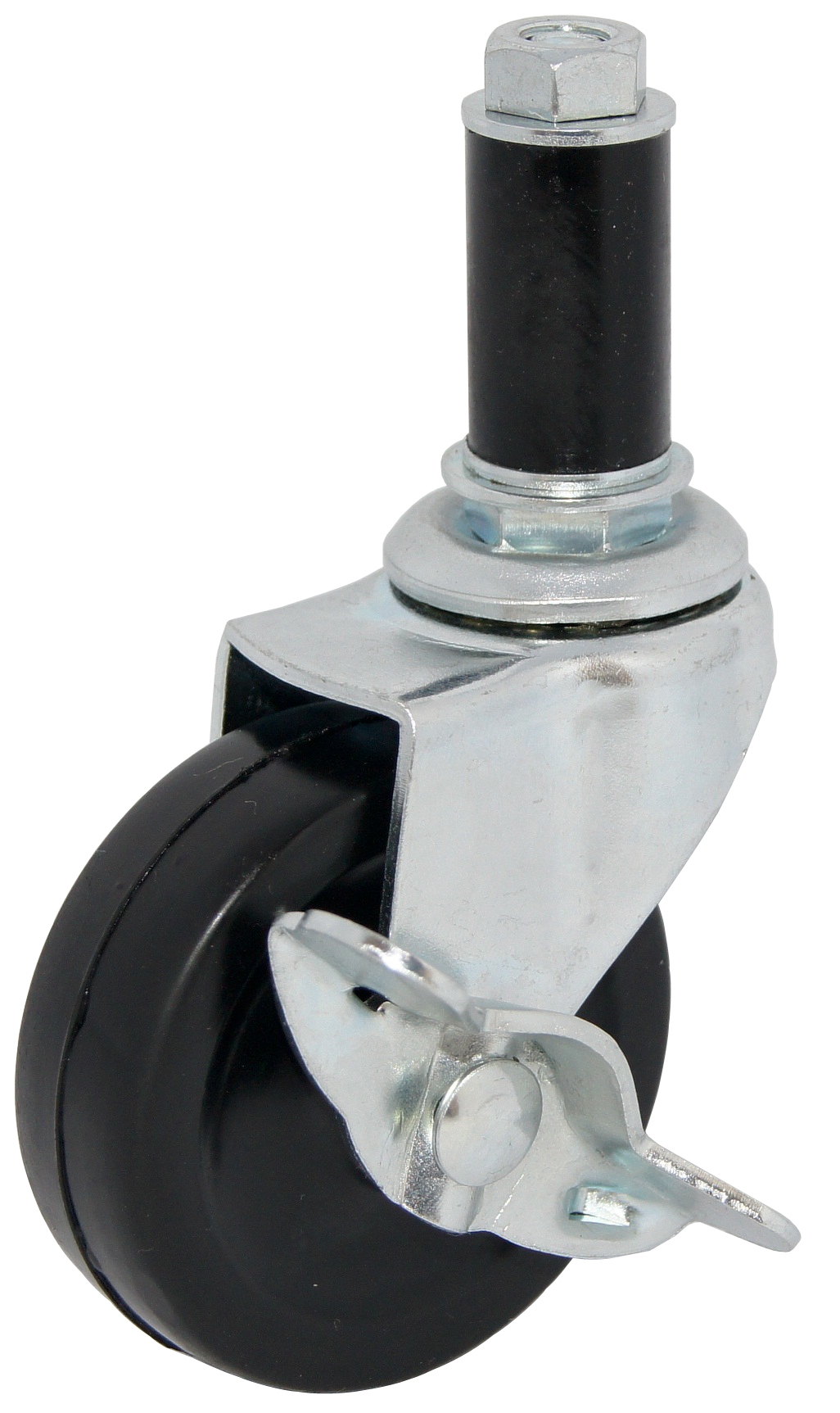

  • Option: 2" Side Locking Brake( SB ) or Front Locking Brake( FB ).
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
  NUMBER
21/2
( 63 )		 13/16
( 21 )		 Soft Rubber (SR) Plain 1/4
( 6.3 )		 WW2520SR
Hard Rubber (HR) Plain WW2520HR
Polyurethane (U) Plain WW2520U
Thermoplastic (TPR) Plain WW2520TPR
Polypropylene (P) Plain WW2520P
Nylon (N) Plain WW2520N
LOAD
CAPCITY
LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
NUMBER
80 ( 36.3 ) 23/16
( 56 )		 31/16
( 78 )		 WW2520SR
80 ( 36.3 ) WW2520HR
100 ( 45.4 ) WW2520U
100 ( 45.4 ) WW2520TPR
100 ( 45.4 ) WW2520P
100 ( 45.4 ) WW2520N
THREAD STEM SIZE ( HEX )
INCH		 STEM
NUMBER
5/16 - 18 x 3/4 H1
5/16 - 18 x 1 H2
5/16 - 18 x 11/2
 H3
5/16 - 18 x 13/8(35mm) H35
5/16 - 18 x 19/16(40mm) H40
3/8 - 18 x 3/4 H4
3/8 - 16 x 1 H5
3/8 - 16 x 11/2
 H8
M12 x P1.25 - 19 ( m/m )  H6
M12 x P1.75 - 50 ( m/m ) H7
M8 x P1.25 - 15 (m/m) H15
