Thread Stem With HEX

Thread Stem With HEX
Product Introduction
LMW514

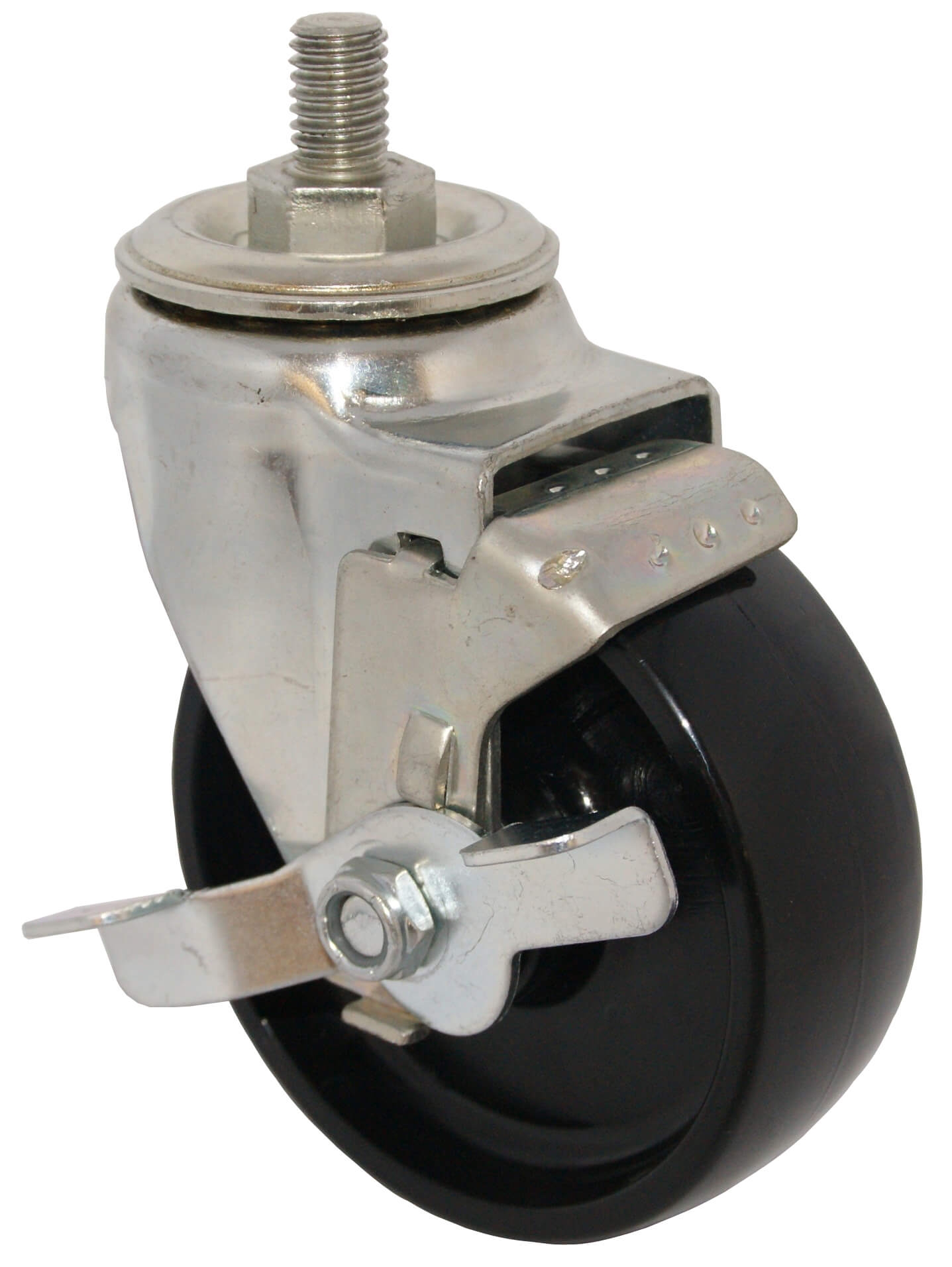

Product Name : Thread Stem With HEX
Product No : LMW3514
  • Load Capacity: 150-300 LBS (68-136.2 Kgs) Each Caster.
  • Application: Excellent for Hospital Supply Industry, Trolleys and Food Service Equipment.
  • Finishs: Corrosion-Resistant Zinc.
  • Option: Side Locking Brake( SB ).
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
 NUMBER
31/2
( 89 )		 11/4
( 32 )		 Soft Rubber (SR) Plain 3/8
( 9.5 )		 LMW3514SR
Hard Rubber (HR) Plain LMW3514HR
Polyurethane (U) Ball LMW3514BU
Thermoplastic (TPR) Ball LMW3514BTPR
LOAD
  CAPCITY
   LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
NUMBER
150 ( 68 ) 47/16
( 88 )		 45/8
( 117 )		 LMW3514SR
200 ( 90 ) LMW3514HR
250 ( 113 ) LMW3514BU
250 ( 113 ) LMW3514BTPR
THREAD STEM SIZE
INCH		 STEM
NUMBER
1/2 - 13 x 3/4 H19
1/2 - 13 x 1 H21
1/2 - 13 x 11/2
 H22
