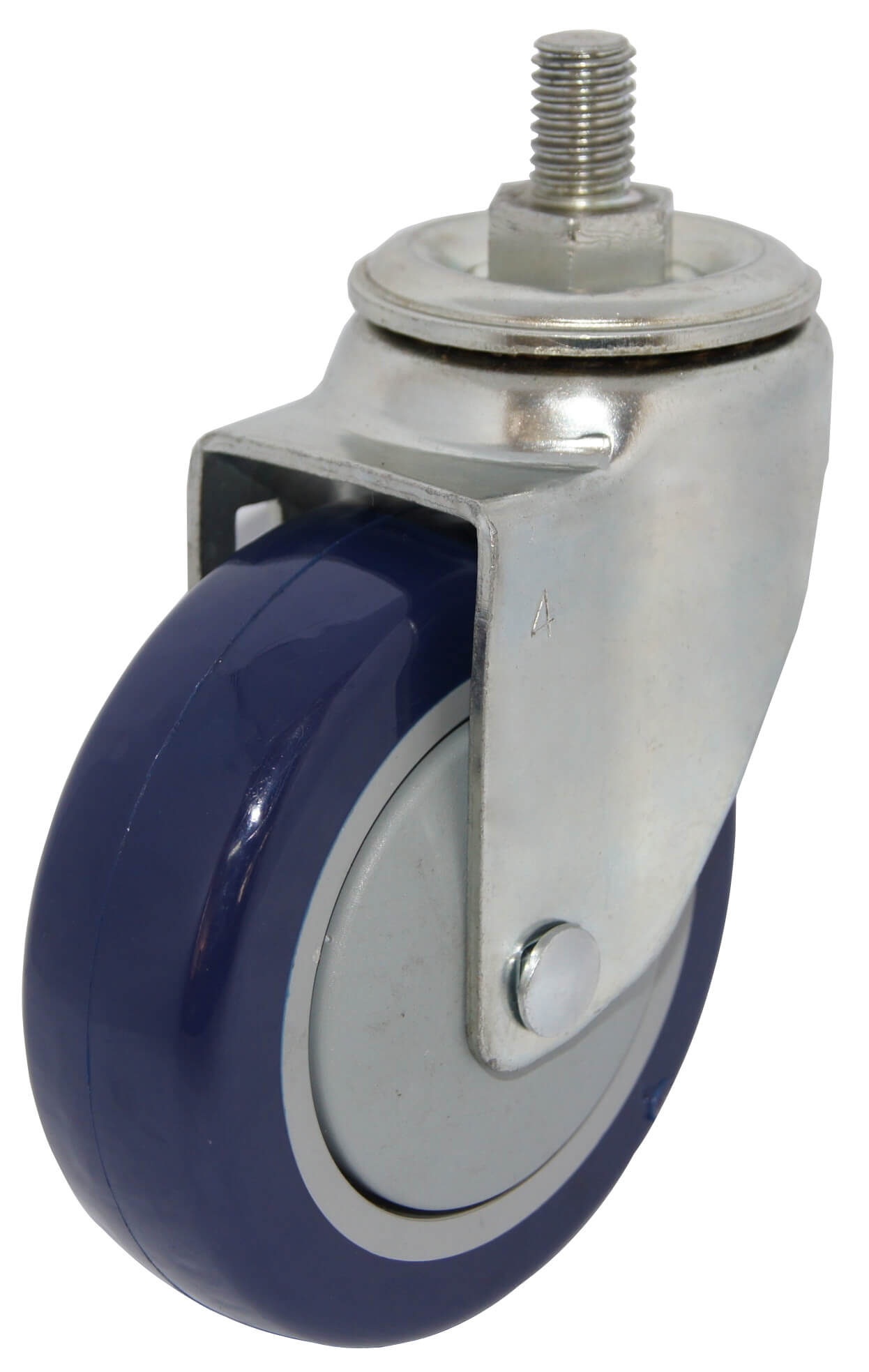

Thread Stem With HEX

Thread Stem With HEX
Product Introduction
LMW314
Product Name : Thread Stem With HEX
Product No : LMW314
  • Load Capacity: 150-300 LBS (68-136.2 Kgs) Each Caster.
  • Application: Excellent for Hospital Supply Industry, Trolleys and Food Service Equipment.
  • Finishs: Corrosion-Resistant Zinc.
  • Option: Side Locking Brake( SB ).
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
 NUMBER
3
( 75 )		 11/4
( 32 )		 Soft Rubber (SR) Plain 3/8
( 9.5 )		 LMW314SR
Hard Rubber (HR) Plain LMW314HR
Polyurethane (U) Ball LMW314BU
Thermoplastic (TPR) Ball LMW314BTPR
Polypropylene (P) Plain LMW314P
Nylon (N) Plain LMW314N
Cast Iron (C) Plain LMW314C
LOAD
CAPCITY
 LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
 NUMBER
150 ( 68 ) 11/8
( 79 )		 41/8
( 104 )		 LMW314SR
200 ( 90 ) LMW314HR
250 ( 113 ) LMW314BU
250 ( 113 ) LMW314BTPR
250 ( 113 ) LMW314P
250 ( 113 ) LMW314N
250 ( 113 ) LMW314C
THREAD STEM SIZE
INCH
 STEM
NUMBER
1/2 - 13 x 3/4 H19
1/2 - 13 x 1 H21
1/2 - 13 x 11/2
 H22
