Top Plate Swivel Caster

Top Plate Swivel Caster
Product Introduction
LMS3514

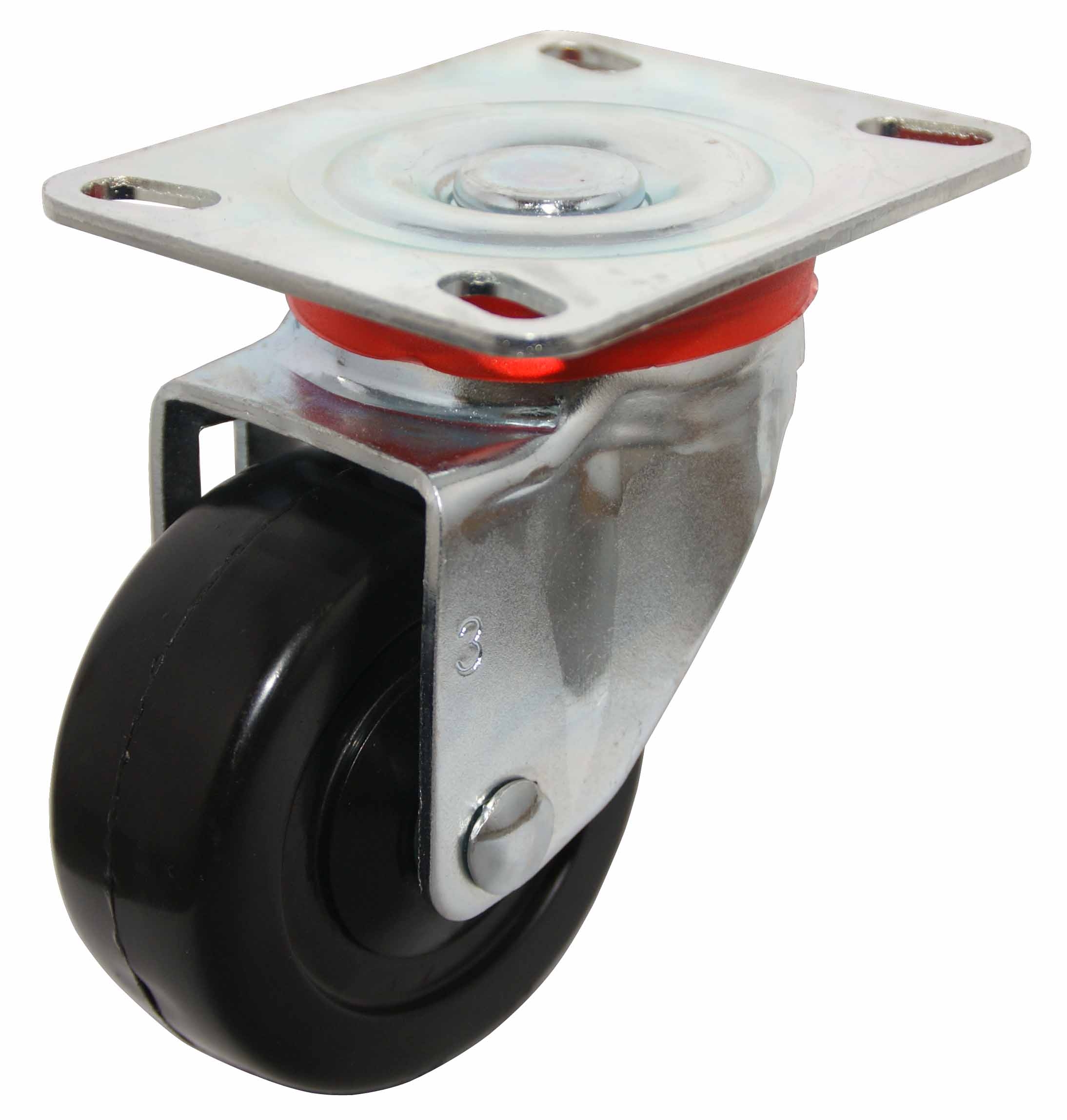

Product Name : Top Plate Swivel Caster
Product No : LMS3514
  • Load Capacity: 150-300 LBS (68-136.2 Kgs) Each Caster.
  • Application: Excellent for Hospital Supply Industry, Trolleys and Food Service Equipment.
  • Finish: Corrosion-Resistant Zinc.
  • Option: Side Locking Brake( SB ).
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
  NUMBER
31/2
( 89 )		 11/4
( 32 )		 Soft Rubber (SR) Plain 3/8
( 9.5 )		 LMS3514SR
Hard Rubber (HR) Plain LMS3514HR
Polyurethane (U) Ball LMS3514BU
Thermoplastic (TPR) Ball LMS3514BTPR
LOAD
CAPCITY
LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
 NUMBER
150 ( 68 ) 47/16
( 88 )		 45/8
( 117 )		 LMS3514SR
200 ( 90 )  LMS3514HR
250 ( 113 )  LMS3514BU
250 ( 113 ) LMS3514BTPR
TOP PLATE SIZE
INCH
( m/m )		 BOLT HOLE SPACING
INCH
( m/m )		 BOLT HOLE
SIZE		 TOP PLATE
NUMBER
23/4 x 35/8
( 70 x 92.5 )		 13/4 x 211/16 - 3
( 44.5 x 68 - 76 )		 8.8 S1
31/16 x 33/4
( 78 x 96 )		 13/4- 23/8 x 3 - 31/8
( 44 - 60 x 76 - 80 )		 8.8 S2
31/8 x 41/8
( 79 x 105 )		 13/4 - 25/16 x 211/16-37/16
( 44.5 - 58.5 x 68.5 - 87.5 )   		 9.5 S3
39/16 x 39/16
( 90 x 90 )		 211/16 - 213/16 x 211/16 - 213/16
(68 - 71 x 68 - 71)		 10 S4
