Top Plate Swivel Caster

Top Plate Swivel Caster
Product Introduction
LMS314

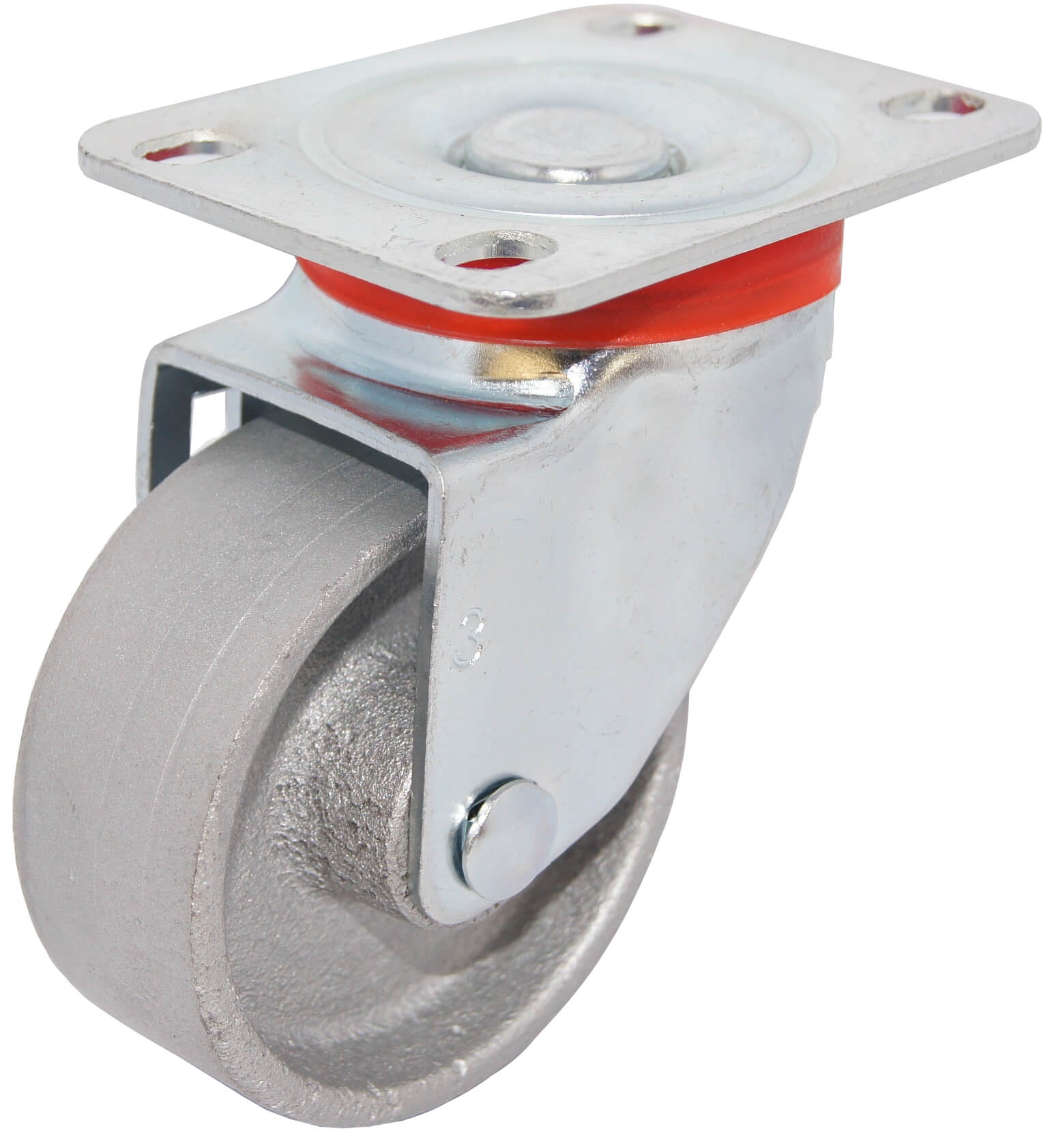

Product Name : Top Plate Swivel Caster
Product No : LMS314
  • Load Capacity: 150-300 LBS (68-136.2 Kgs) Each Caster.
  • Application: Excellent for Hospital Supply Industry, Trolleys and Food Service Equipment.
  • Finish: Corrosion-Resistant Zinc.
  • Option: Side Locking Brake( SB ).
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
NUMBER
3
( 75 )		 11/4
( 32 )		 Soft Rubber (SR) Plain 3/8
( 9.5 )		 LMS314SR
Hard Rubber (HR) Plain LMS314HR
Polyurethane (U) Ball LMS314BU
Thermoplastic (TPR) Ball LMS314BTPR
Polypropylene (P) Plain LMS314P
Nylon (N) Plain LMS314N
Cast Iron (C) Plain LMS314C
LOAD
 CAPCITY
LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
NUMBER
  150 ( 68 )   11/8
( 79 )		 41/8
( 105 )		 LMS314SR
200 ( 90 ) LMS314HR
220 ( 100 ) LMS314BU
220 ( 100 ) LMS314BTPR
220 ( 100 ) LMS314P
220 ( 100 ) LMS314N
250 ( 113 ) LMS314C
TOP PLATE SIZE
INCH
( m/m )		 BOLT HOLE SPACING
INCH
( m/m )		 BOLT HOLE
SIZE		 TOP PLATE
NUMBER
23/4 x 35/8
( 70 x 92.5 )		 13/4x 211/16 - 3
( 44.5 x 68 - 76 )		 8.8 S1
31/16 x 33/4
( 78 x 96 )		 13/4 - 23/8 x 3 - 31/8
( 44 - 60 x 76 - 80 )		 8.8 S2
31/8 x 41/8
( 79 x 105 )		 13/4  - 25/16 x 211/16-37/16
( 44.5 - 58.5 x 68.5 - 87.5 )   		 9.5 S3
39/16 x 39/16
( 90 x 90 )		 211/16 - 213/16 x 211/16 - 213/16
(68 - 71 x 68 - 71)		 10 S4
