Product Introduction
ISOH514

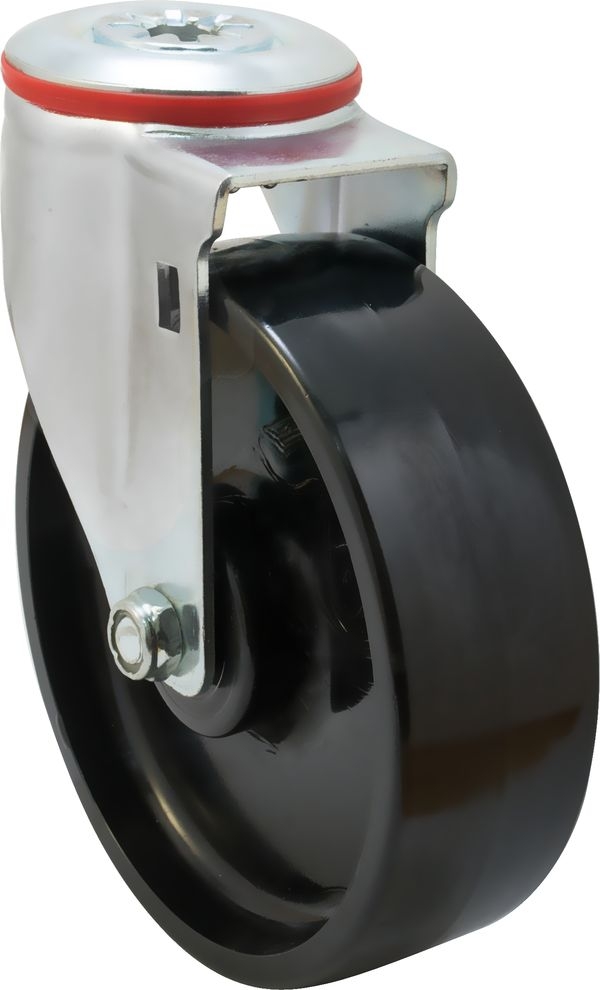

Product Name : Bolt Hole Swivel Caster
Product No : ISOH514
  • Load Capacity: 150-300 LBS (68-136 Kgs)Each Caster.
  • Application: Excellent for Hospital Supply Industry,Trolleys and Food Service Equipment.
  • Finish: Corrosion-Resistant Zinc.

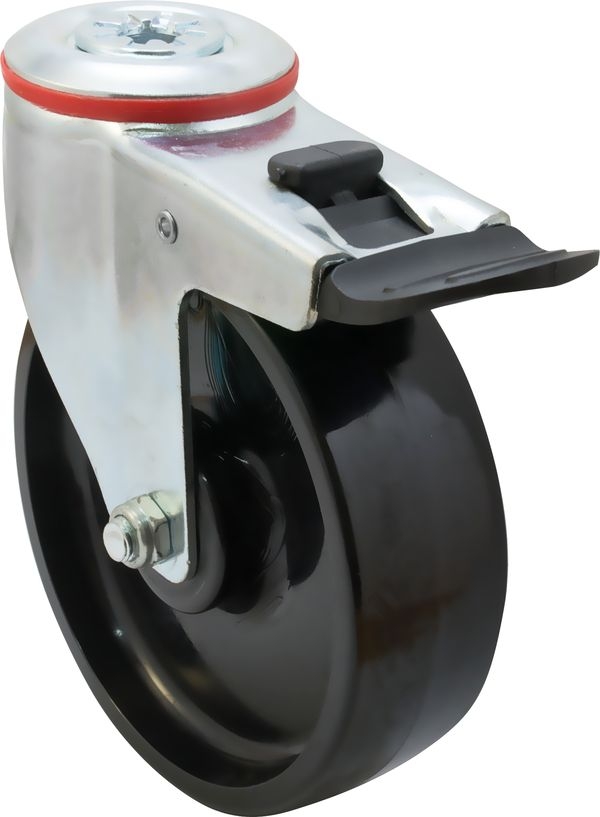

  • Option: Side Locking Brake( SB ) or Front Total Locking Brake( TLB ).
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
NUMBER
5
( 127 )		 11/4
( 32 )		 Soft Rubber (SR) Plain 3/8
( 9.5 )		 ISOH514SR
Hard Rubber (HR) Plain ISOH514HR
Polyurethane (U) Ball ISOH514BU
Thermoplastic (TPR) Ball ISOH514BTPR
Polypropylene (P) Plain ISOH514P
Nylon (N) Plain ISOH514N
LOAD
CAPCITY
LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
NUMBER
150 ( 68 ) HO - 4
( 101 )
TLB - 5
( 127 )		 63/16
 ( 157 )		 ISOH514SR
200 ( 90 )  ISOH514HR
300 ( 136 ) ISOH514BU
300 ( 136 ) ISOH514BTPR
300 ( 136 ) ISOH514P
300 ( 136 ) ISOH514N
BOLT HOLE SIZE
INCH
( m/m )		 BOLT HOLE
NUMBER
1/2
12.7		 B12
