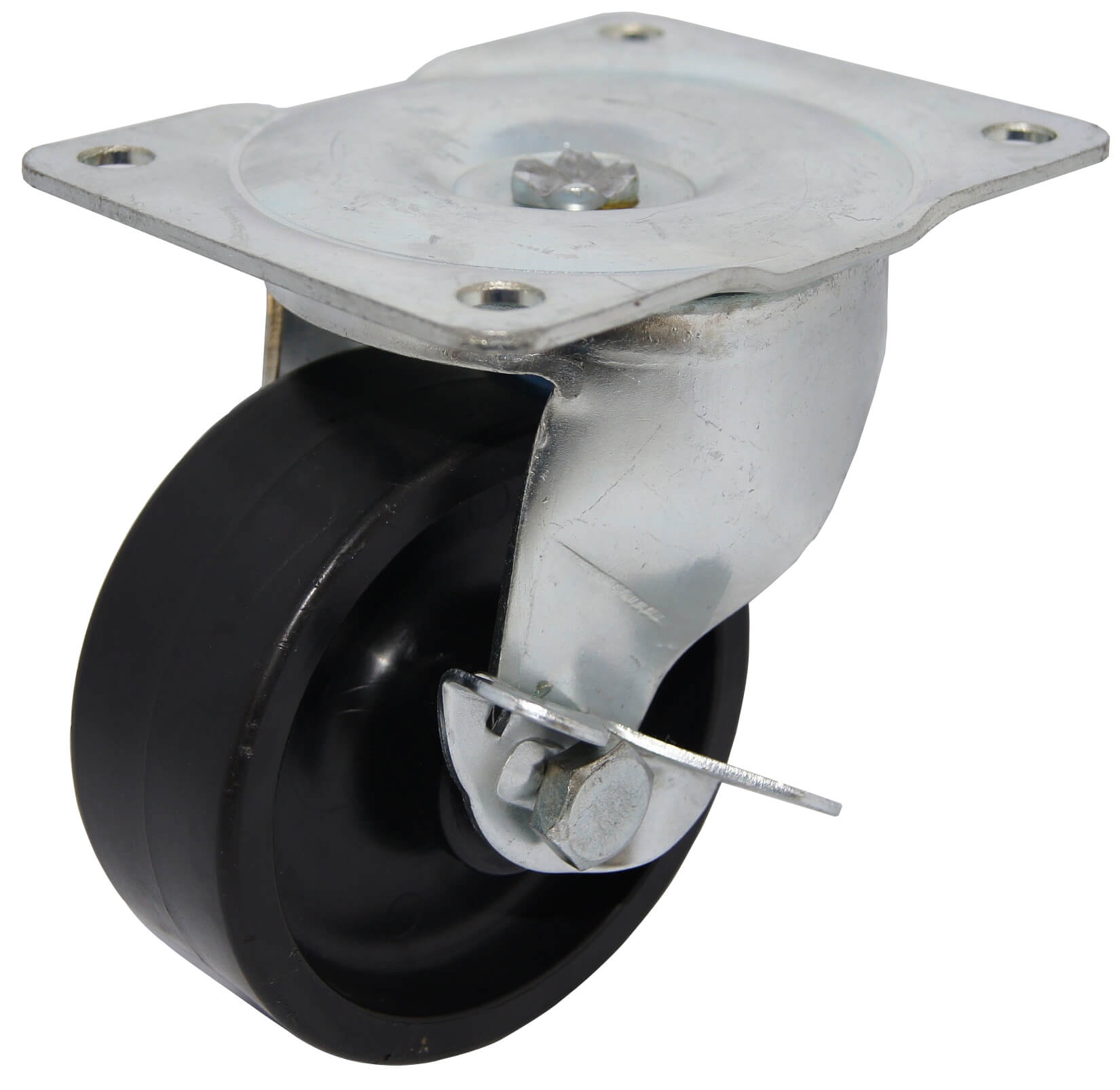

Top Plate Swivel Caster

Top Plate Swivel Caster
Product Introduction
GSP4038
Product Name : Top Plate Swivel Caster
Product No : GSP4038
  • Load Capacity:90-350 LBS(40-160Kgs) Each Caster.
  • Application:General use in Hardware. Factory and Warehouse. Good Combination of Strength, Durability, Economy.
  • Finish:Corrosion-Resistant Zinc.
  • Opption:Side Locking Brake( SB ).
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
NUMBER
4
( 100 )		 11/2
( 38 )		 Soft Rubber (SR) Plain 3/8
( 9.5 )		 GSP4038SR
Hard Rubber (HR) Plain GSP4038HR
Polypropylene (P) Plain GSP4038P
Nylon (N) Plain GSP4038N
LOAD
CAPCITY
LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
NUMBER
225 (102 ) 25/16
( 74.6 )		 5
( 127 )		 GSP4038SR
250 (113.5) GSP4038HR
300 (136.2) GSP4038P
300 (136.2) GSP4038N
DIAMETER
INCH
( m/m )		 TOP PLATE SIZE
INCH
( m/m )		 BOLT HOLE SPACING
INCH
( m/m )		 BOLT HOLE SIZE
INCH
( m/m )		 TOP PLATE NUMBER
2 17/8 x 25/8
 ( 48 x 68 )		 15/16 x 21/8
( 24 x 54.5 )		 1/4
 ( 6.8 )		 G1
21/2
 23/4 x 37/8
( 70 x 98 )		 13/4 x 3 - 31/16
( 45.5 x 76.5 - 78.5 )		 5/16
( 8 )		 G2
3 31/8 x 41/8
( 79 x 106 )		 23/8 x 33/8 - 37/16
( 60 x 85 - 88 )		 11/32
( 8.8 )		 G3
4 4 x 5
( 100 x 127 )		 3 x 4
( 76 x 101 )		 13/32
( 10.5 )		 G4
