Product Introduction
DCH3025

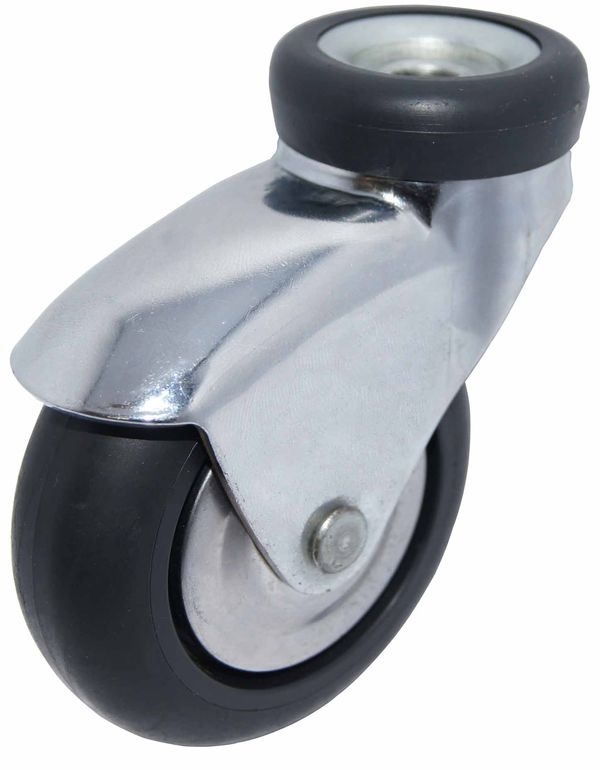

Product Name : Bolt Hole Swivel Caster
Product No : DCH3025
  • Load Capacity: 80-100 LBS (36-50 Kgs)
  • Double Ball Bearing Swivel, Dust Cover.
  • Application: Excellent for trolley and food service equipment and hospital supply Industry and Showing stand.
  • Finish: Zinc(2), Bright Chrome Plating.
  • Option: 2" Front Locking Brake( FB ), 3" Front Total Locking Brake( TLB ),4"Side Locking Brake( SB )
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
 NUMBER
3
( 75 )		 1

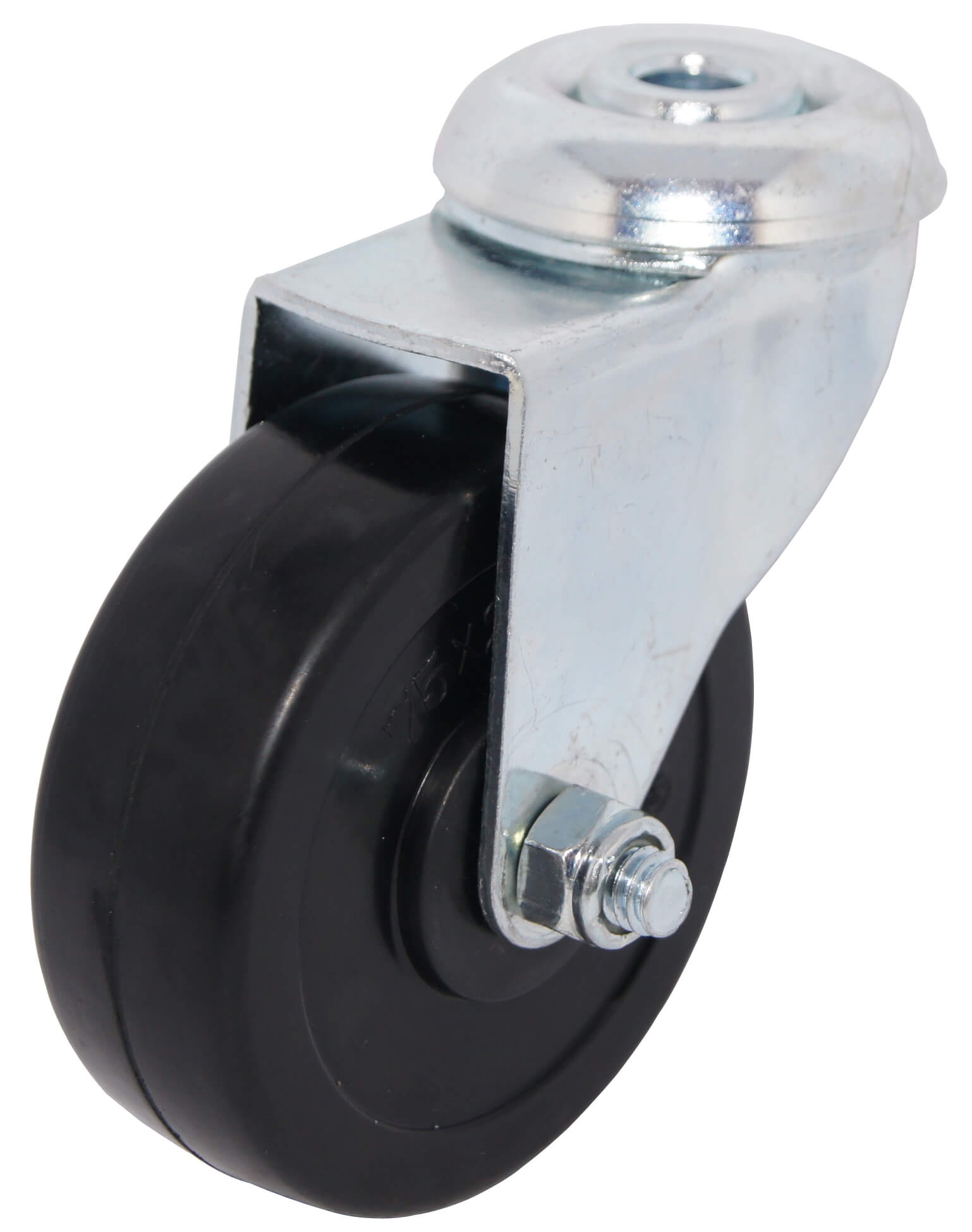

( 25 )		 Soft Rubber (SR) Plain 8 DCH3025SR
Hard Rubber (HR) Plain DCH3025HR

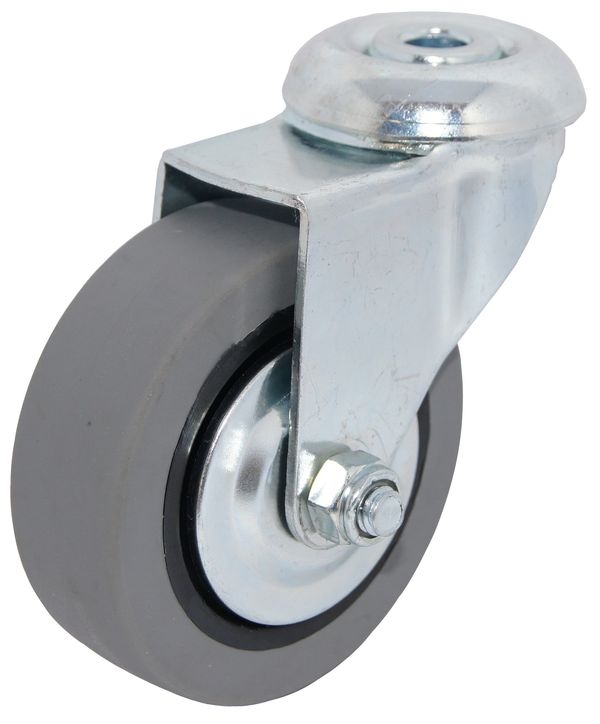

Polyurethane (U) Plain DCH3025U
Thermoplastic (TPR) Plain DCH3025TPR
Polypropylene (P) Plain DCH3025P
Nylon (N) Plain DCH3025N
LOAD
CAPCITY
LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
 NUMBER
100 ( 45.4 ) 27/8
( 73 )		 4
( 102 )		 DCH3025SR
100 ( 45.4 ) DCH3025HR
100 ( 45. 4 ) DCH3025U
100 ( 45.4 ) DCH3025TPR
100 ( 45.4 ) DCH3025P
100 ( 45.4 ) DCH3025N
BOLT HOLE SIZE
m/m		 BOLT HOLE NUMBER
8.2 B8
10.2 B10
