Product Introduction
DCH2020

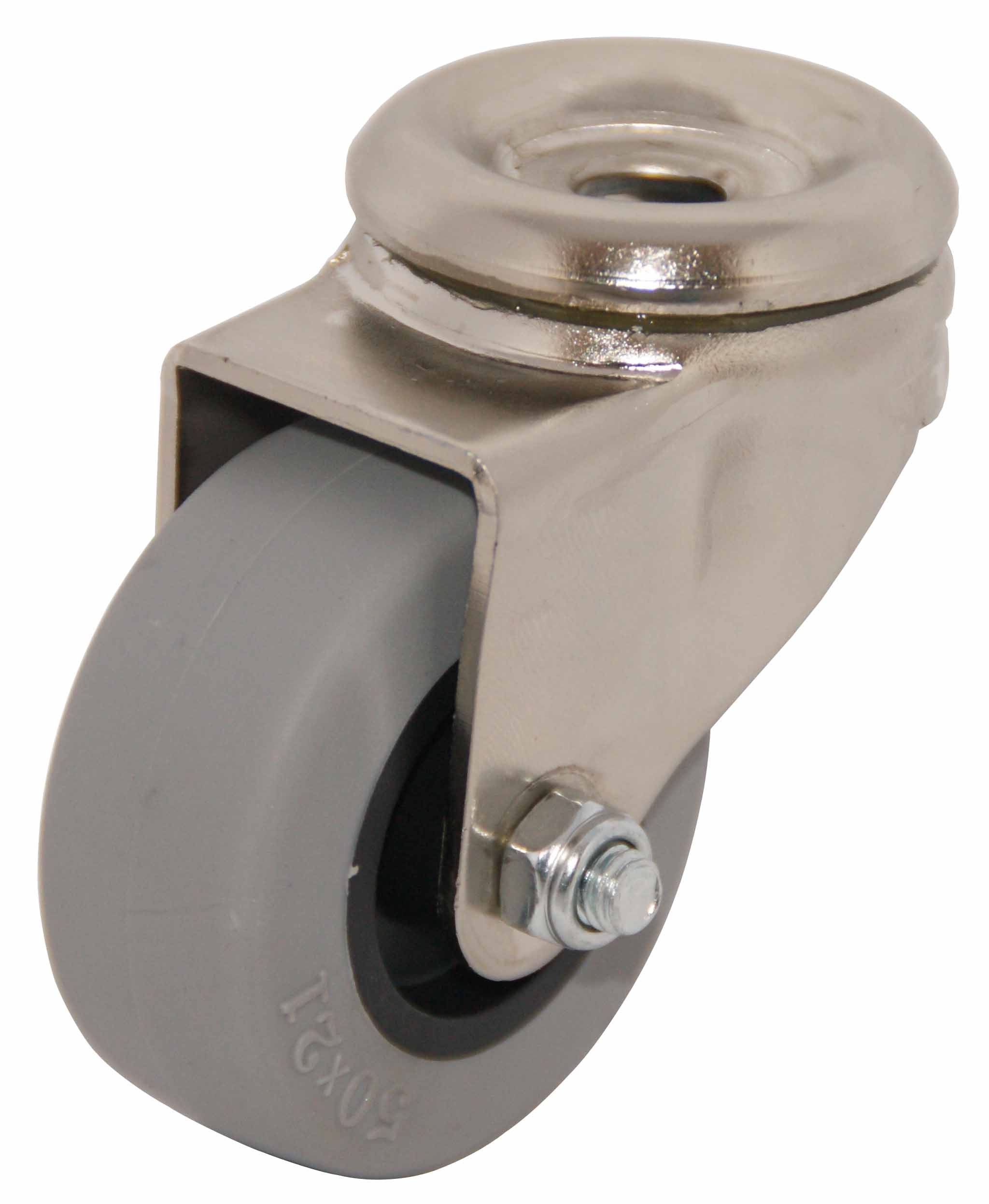

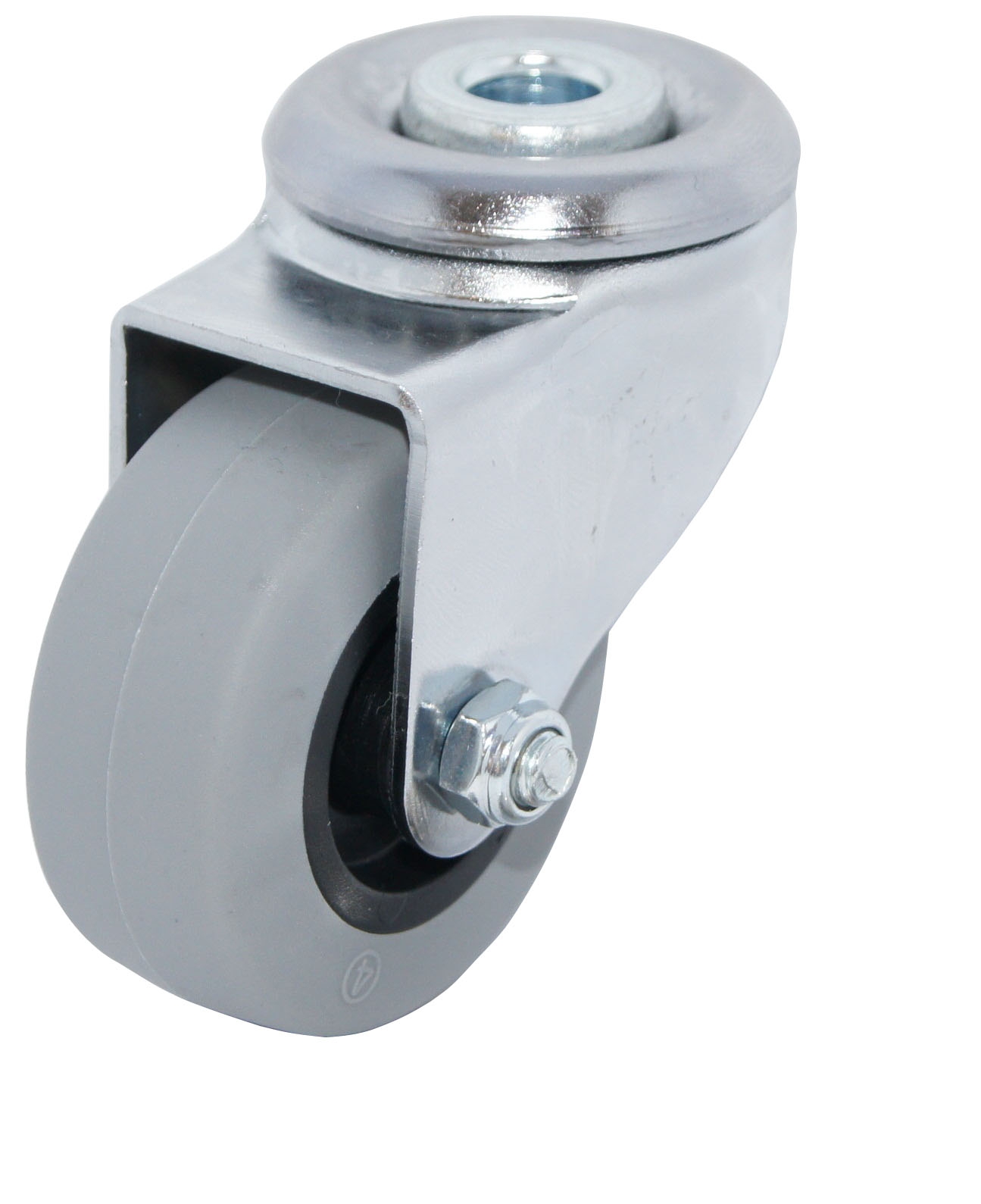

Product Name : Bolt Hole Swivel Caster
Product No : DCH2020
  • Load Capacity: 80-100 LBS (36-50 Kgs)
  • Double Ball Bearing Swivel, Dust Cover.
  • Application: Excellent for trolley and food service equipment and hospital supply Industry and Showing stand.
  • Finish: Zinc(2), Bright Chrome Plating.

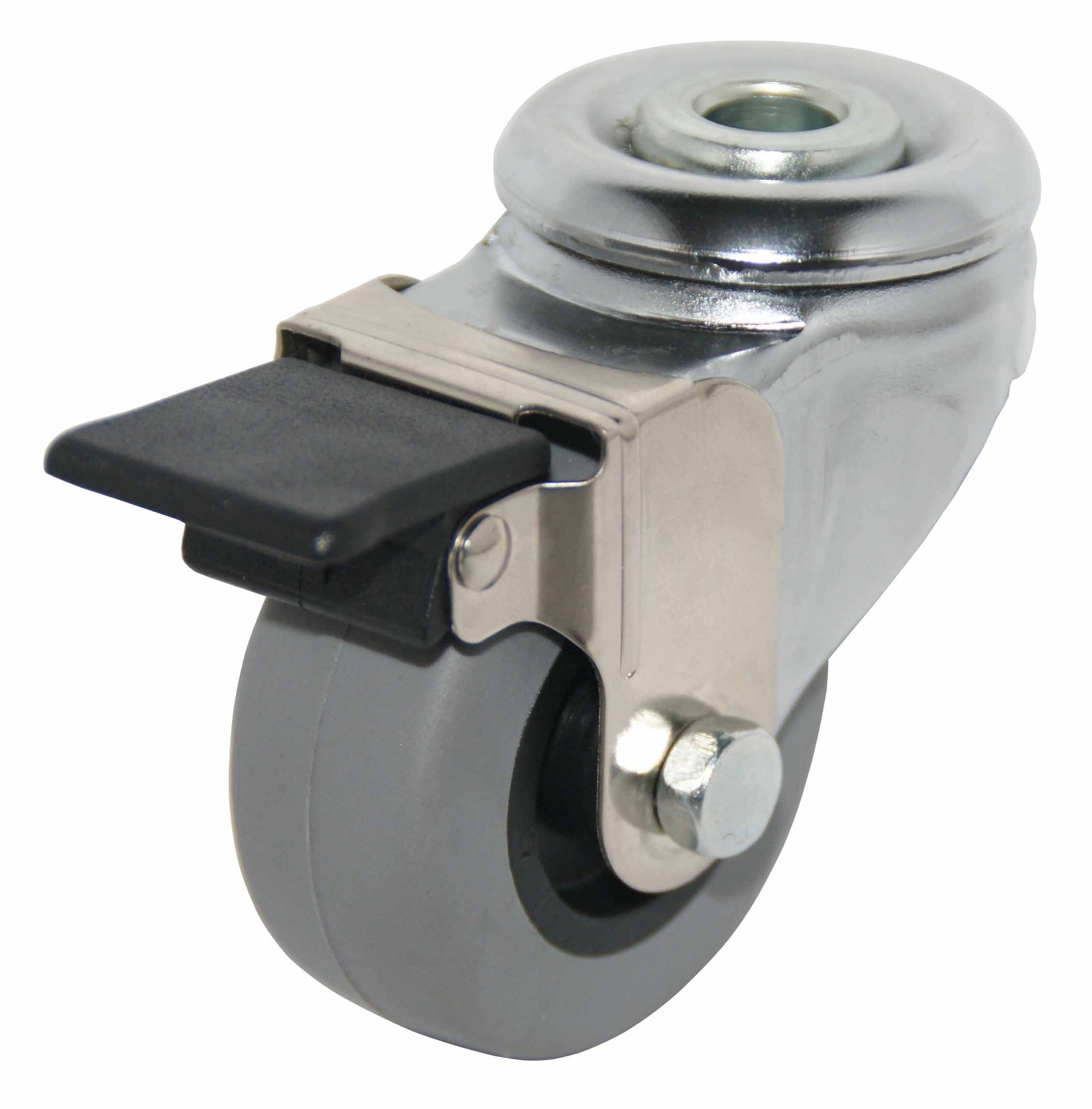

  • Option: 2" Front Locking Brake( FB ), 3" Front Total Locking Brake( TLB ),4"Side Locking Brake( SB )
Inquiry
DIAMETER
INCH
( m/m )		 TREAD WIDTH
INCH
( m/m )		 WHEEL TYPE BEARING AXIE SIZE
INCH
( m/m )		 CASTER
 NUMBER
2
( 50 )		 13/16
( 21 )		 Soft Rubber (SR) Plain 8 DCH2020SR
Hard Rubber (HR) Plain DCH2020HR
Polyurethane (U) Plain DCH2020U
Thermoplastic (TPR) Plain DCH2020TPR
Polypropylene (P) Plain DCH2020P
Nylon (N) Plain DCH2020N
LOAD
CAPCITY
LBS ( Kgs )		 SWIVEL RADIUS
INCH
( m/m )		 OVERALL HEIGHT
INCH
( m/m )		 CASTER
 NUMBER
80 ( 36 ) 13/4
( 45 )		 25/8
( 67 )		 DCH2020SR
80 ( 36 ) DCH2020HR
90 ( 41 ) DCH2020U
90 ( 41 ) DCH2020TPR
90 ( 41 ) DCH2020P
90 ( 41 ) DCH2020N
BOLT HOLE SIZE
m/m		 BOLT HOLE NUMBER
8.2 B8
10.2 B10
